GM OEM Software with RLink J2534 Connection Instructions
Tips：You need to install the GM OEM software before use. If it's not installed yet, you can download and install it from the official GM website.

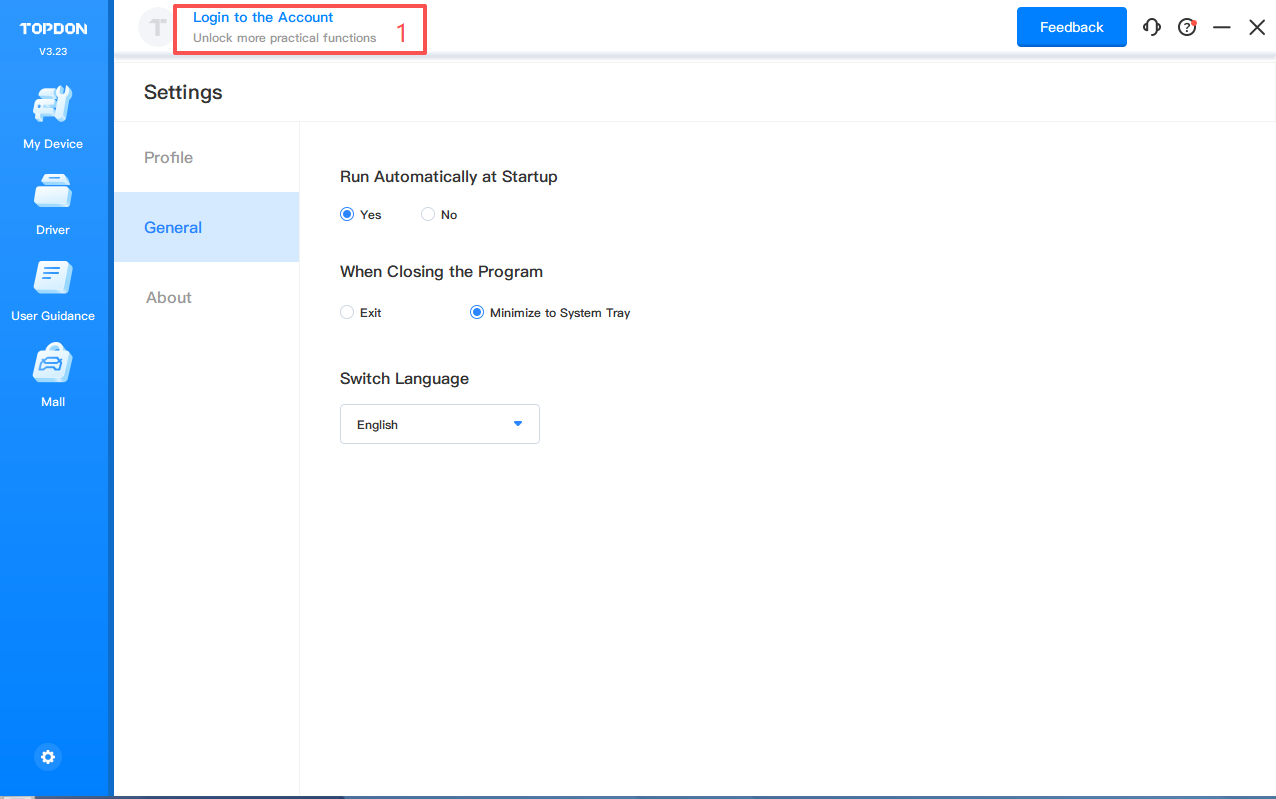

1. Open the RLink Platform.Clicking “Login to the Account” will automatically redirect you to the login page.Log in to the account bound to the RLink J2534 device.

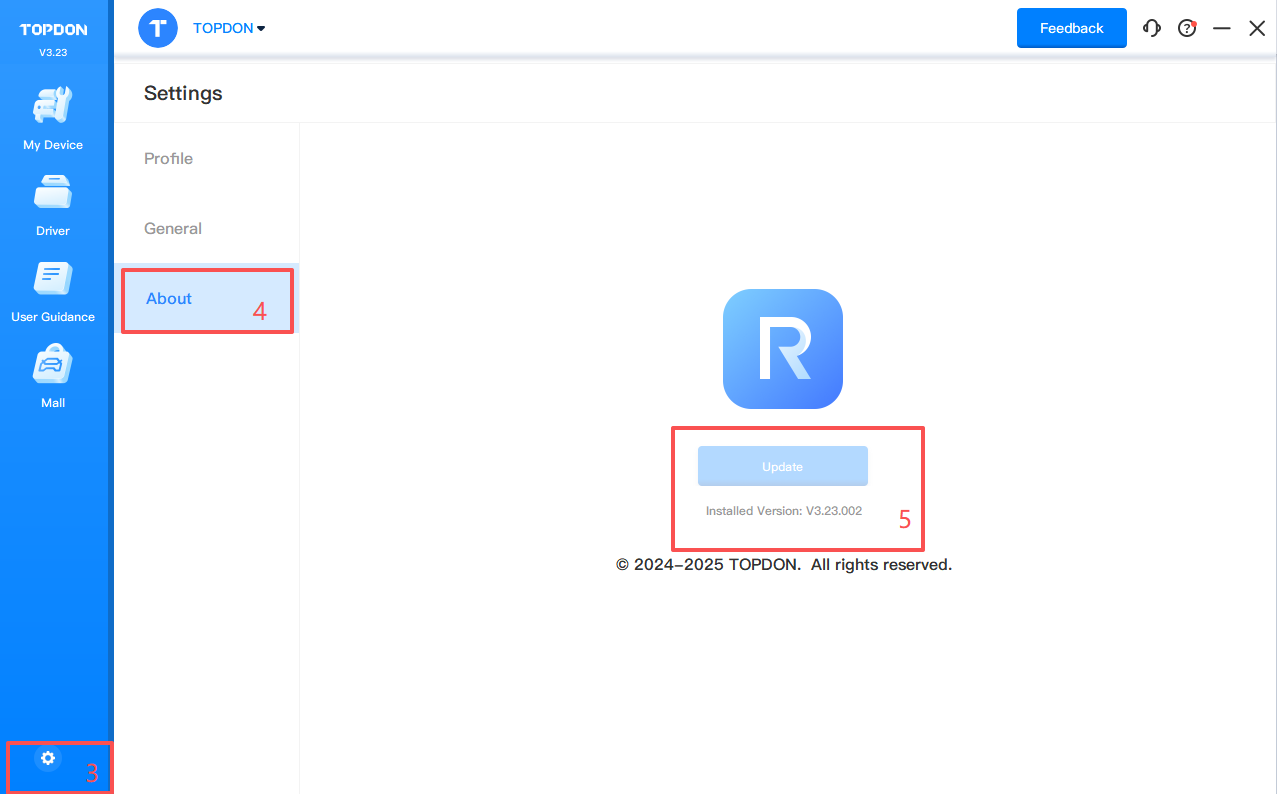

Note: After binding and activating the device and downloading the driver, you can use the RLink J2534 device to perform vehicle diagnostics without opening the RLink Platform later.2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.
Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.
4. Click GM and click Download to download the driver.

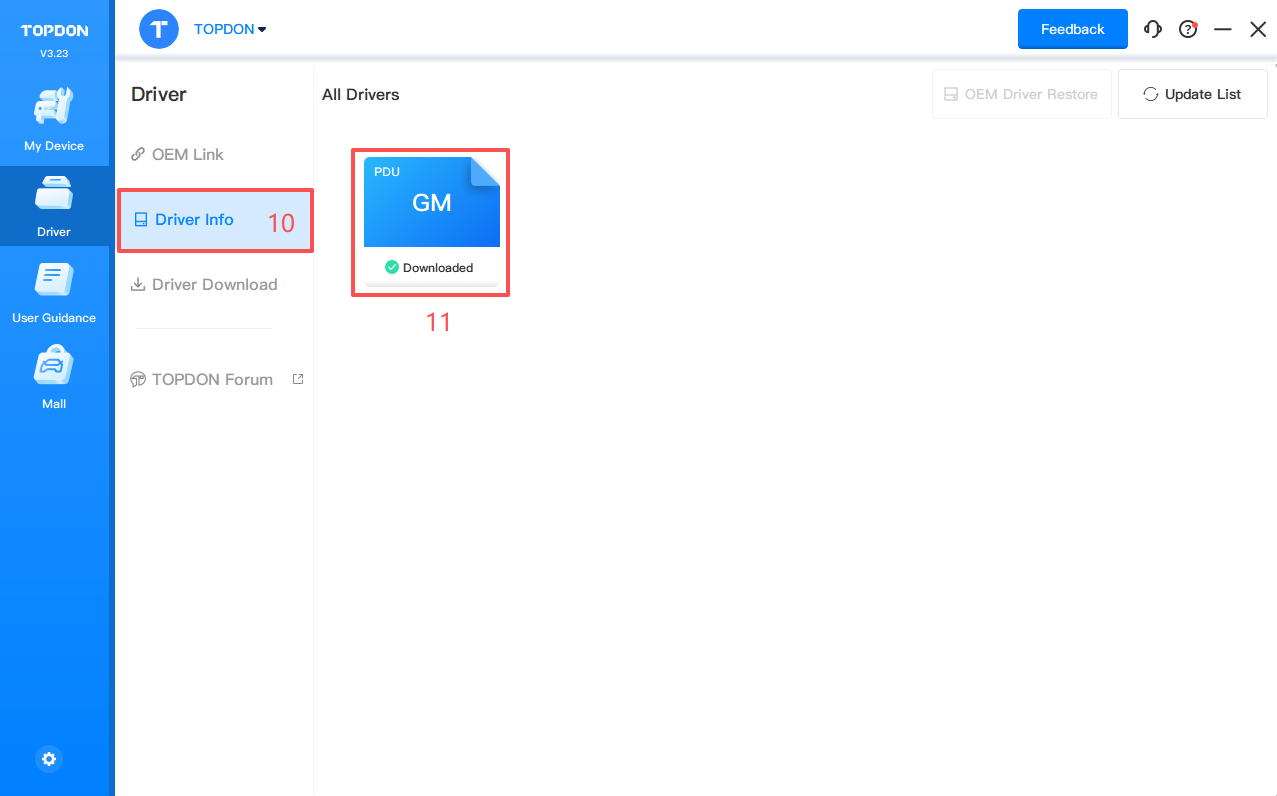

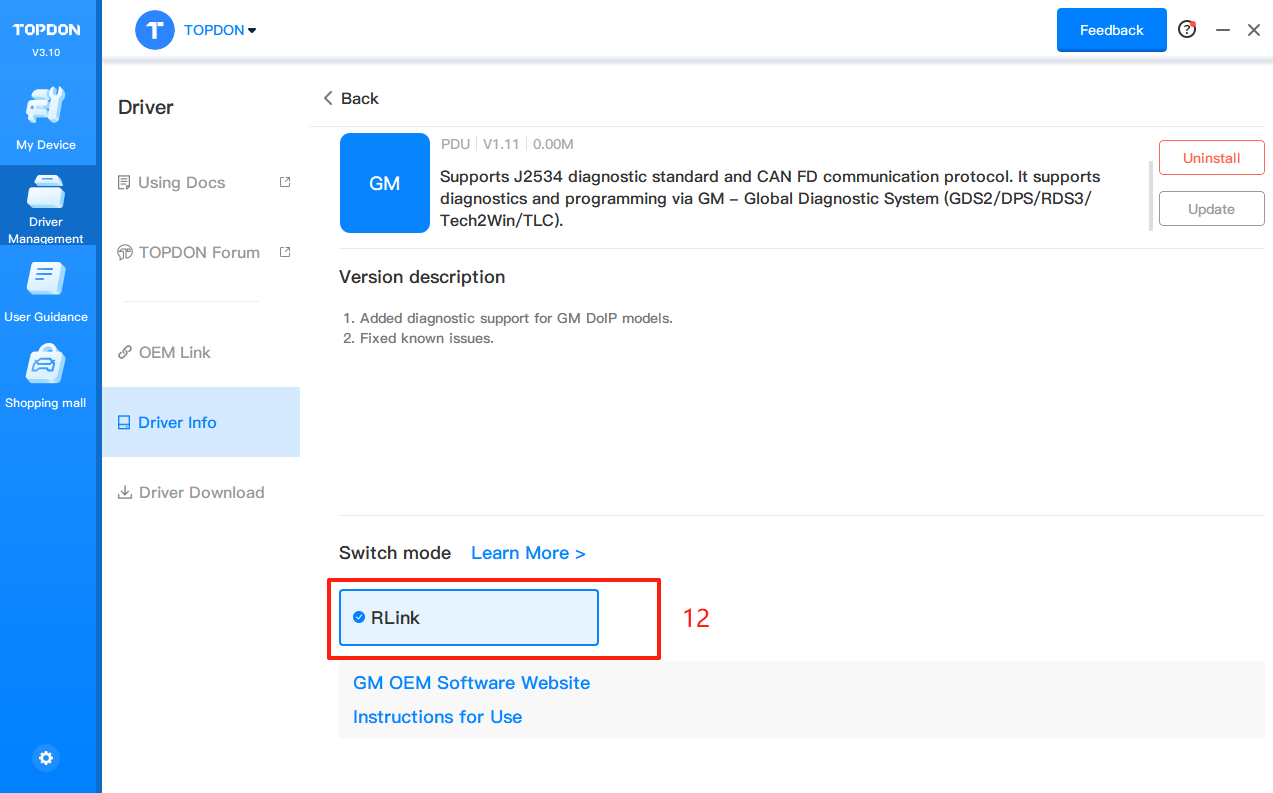

5. Click Driver Management > Driver Info. Then click GM to configure the driver mode.
6. When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

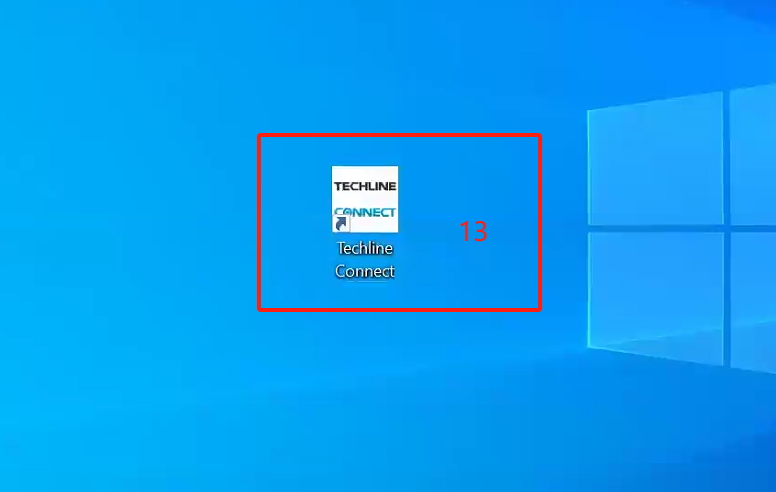

7. Double click the icon to open the Techline.

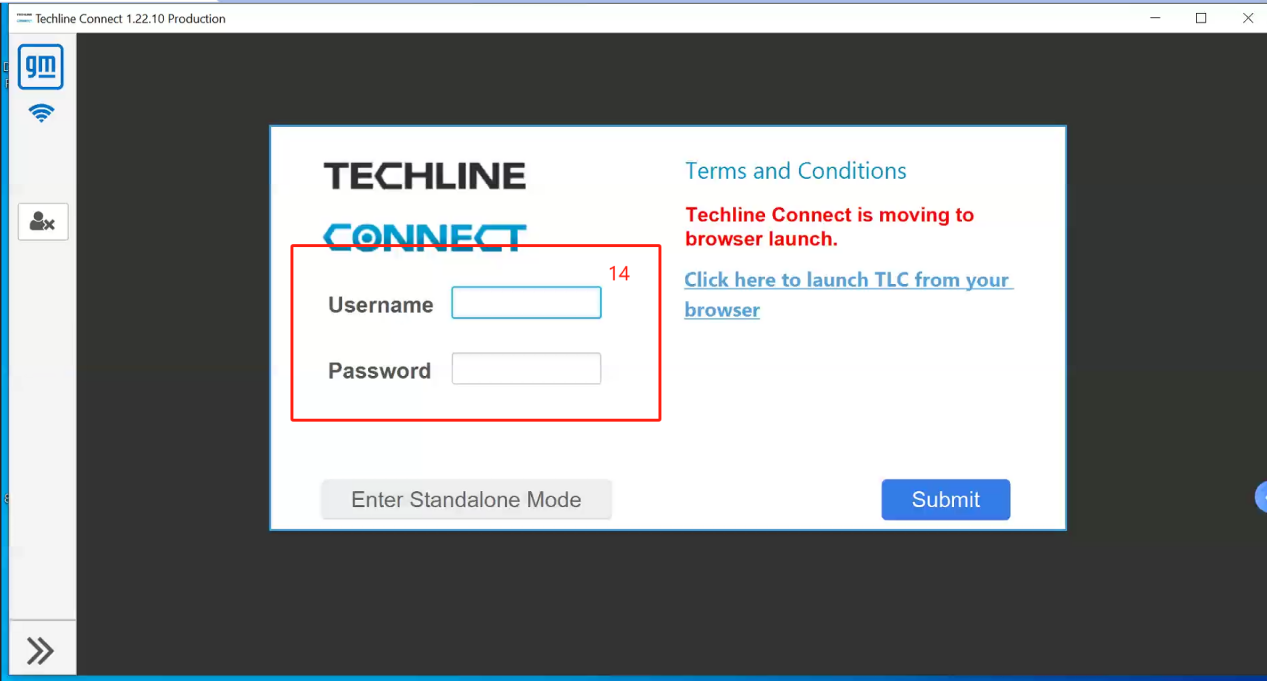

8. Enter the account that you purchased on the official website of GM.

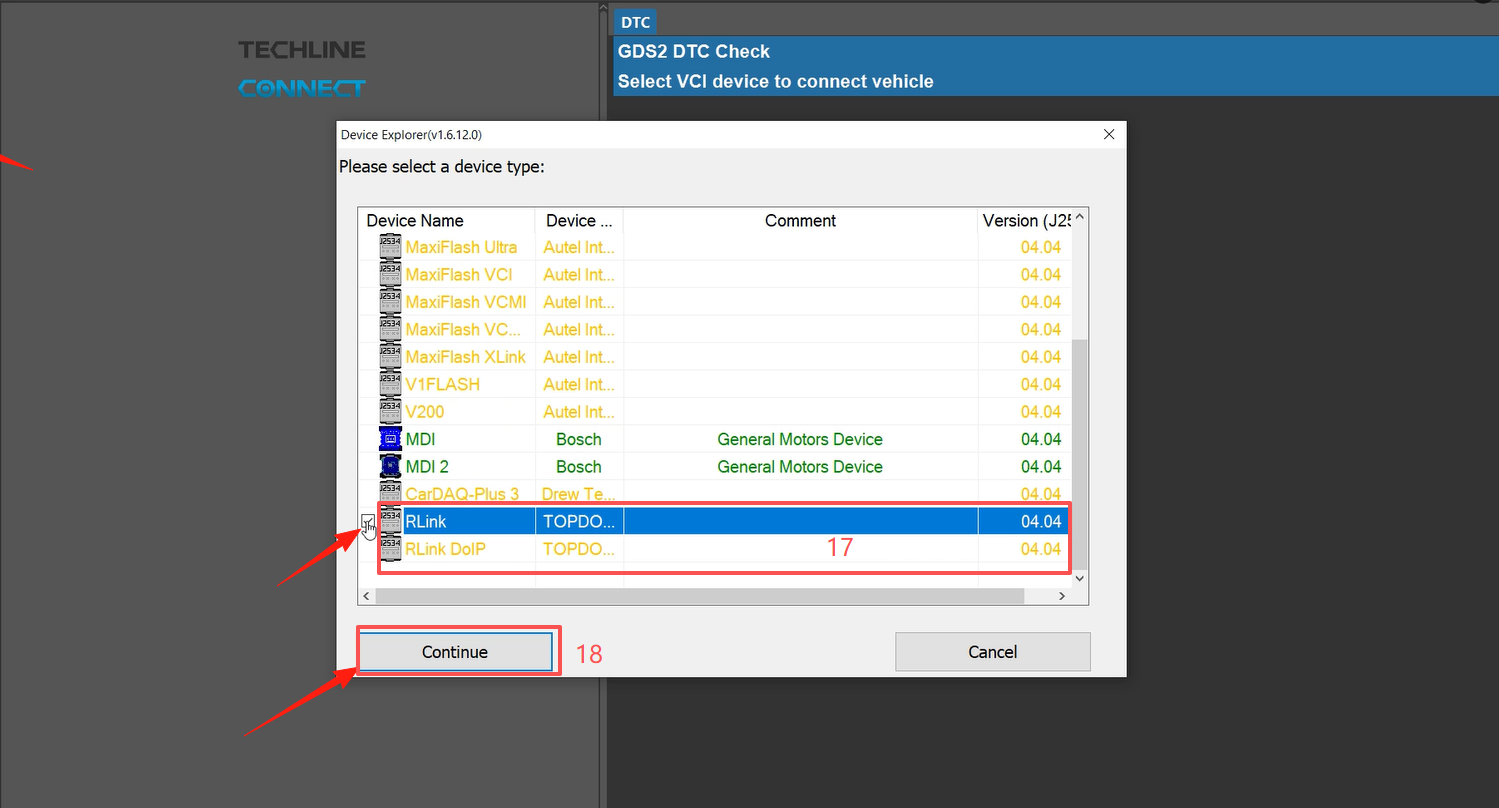

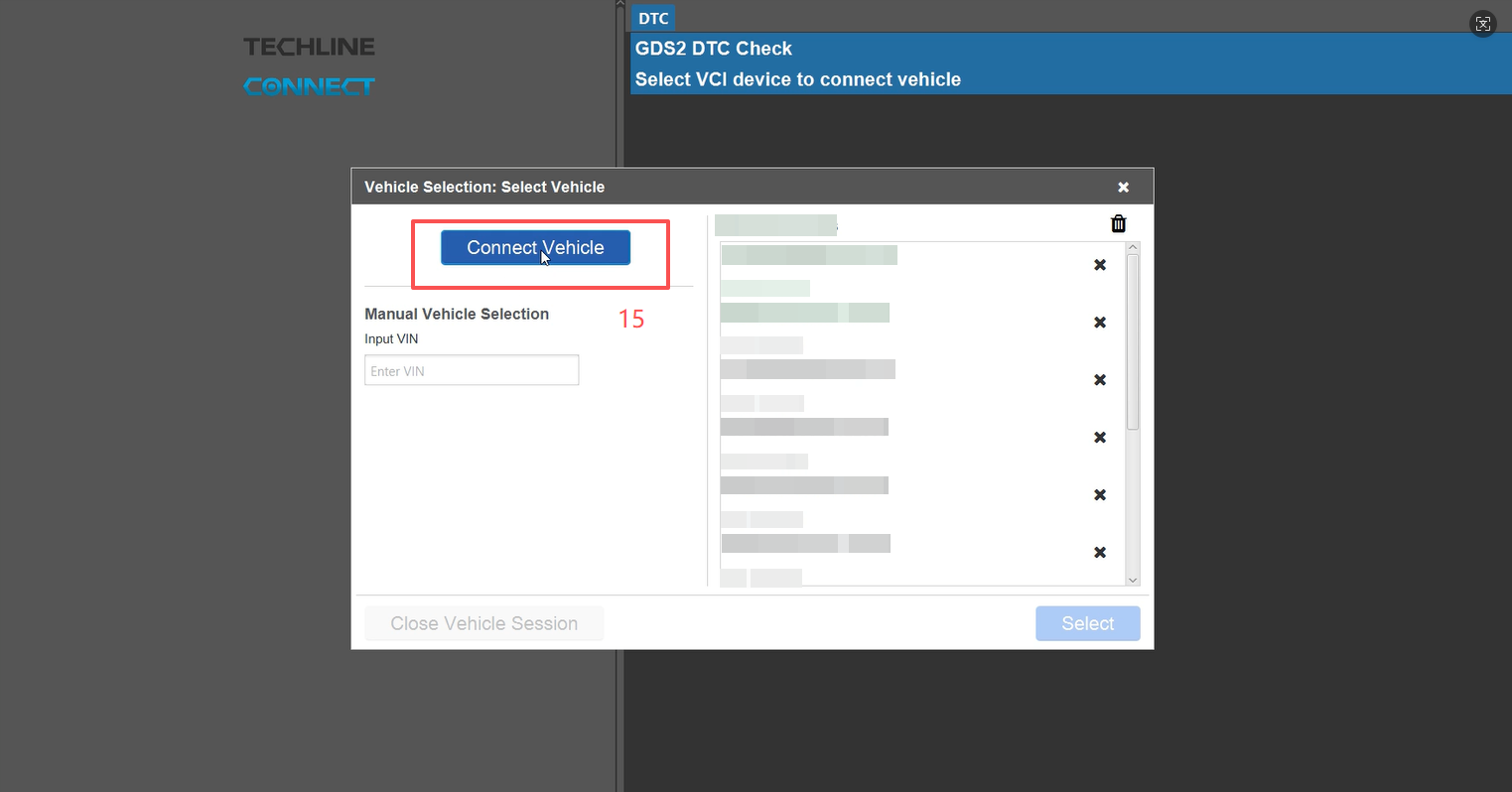

9.After entering the diagnostic page, click the ‘connection vehicle’ button.
12. When the device is properly connected, the VCI icon will change from gray to blue.
13.Once the VCI is successfully connected, the vehicle will be automatically identified. After the identification is completed, the vehicle information will be displayed.
14. After the vehicle is successfully identified, select SPS programming or GDS2 diagnosis according to your needs. Note: The display of these two functions is related to the purchased account.
Please refer to the connection instruction video:
