GM OEM Software with RLink X7 Connection Instructions

Tips：You need to install the GM OEM software before use. If it's not installed yet, you can download and install it from the official GM website.

https://www.acdelcotds.com/

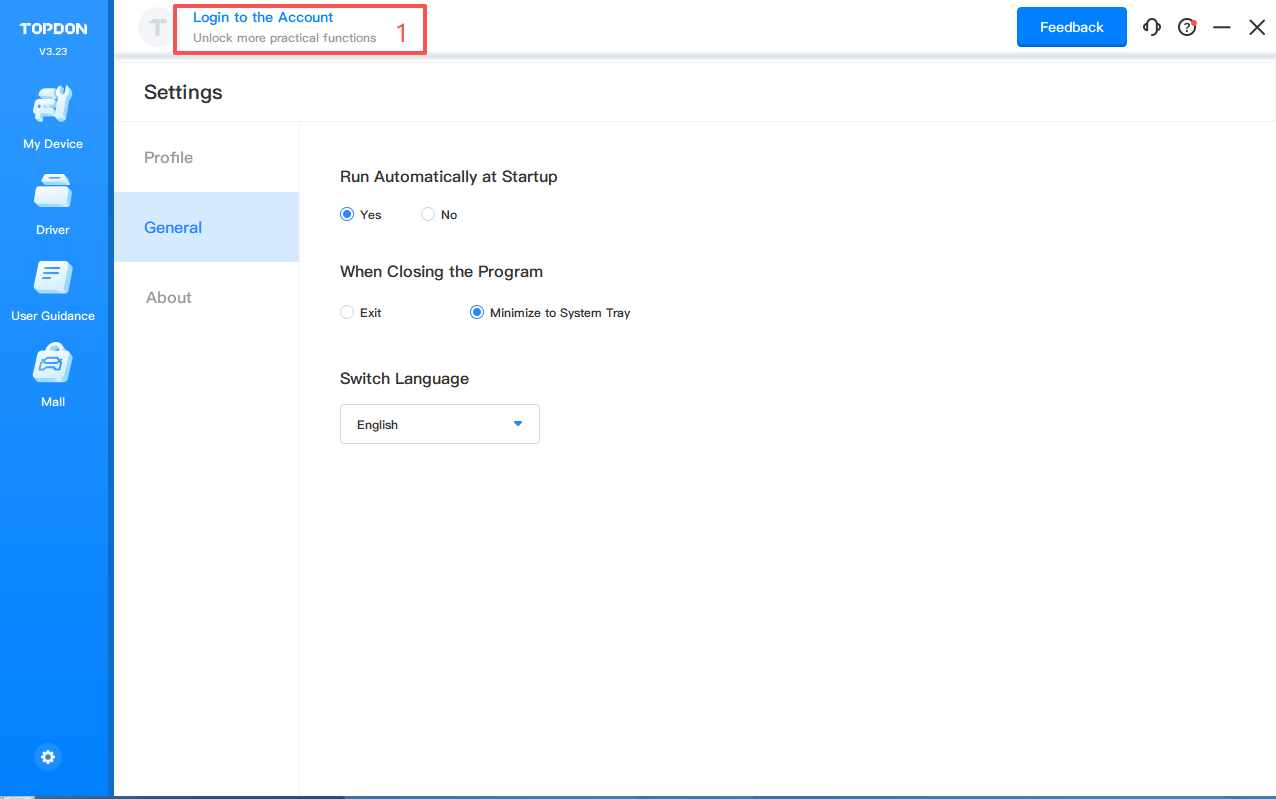

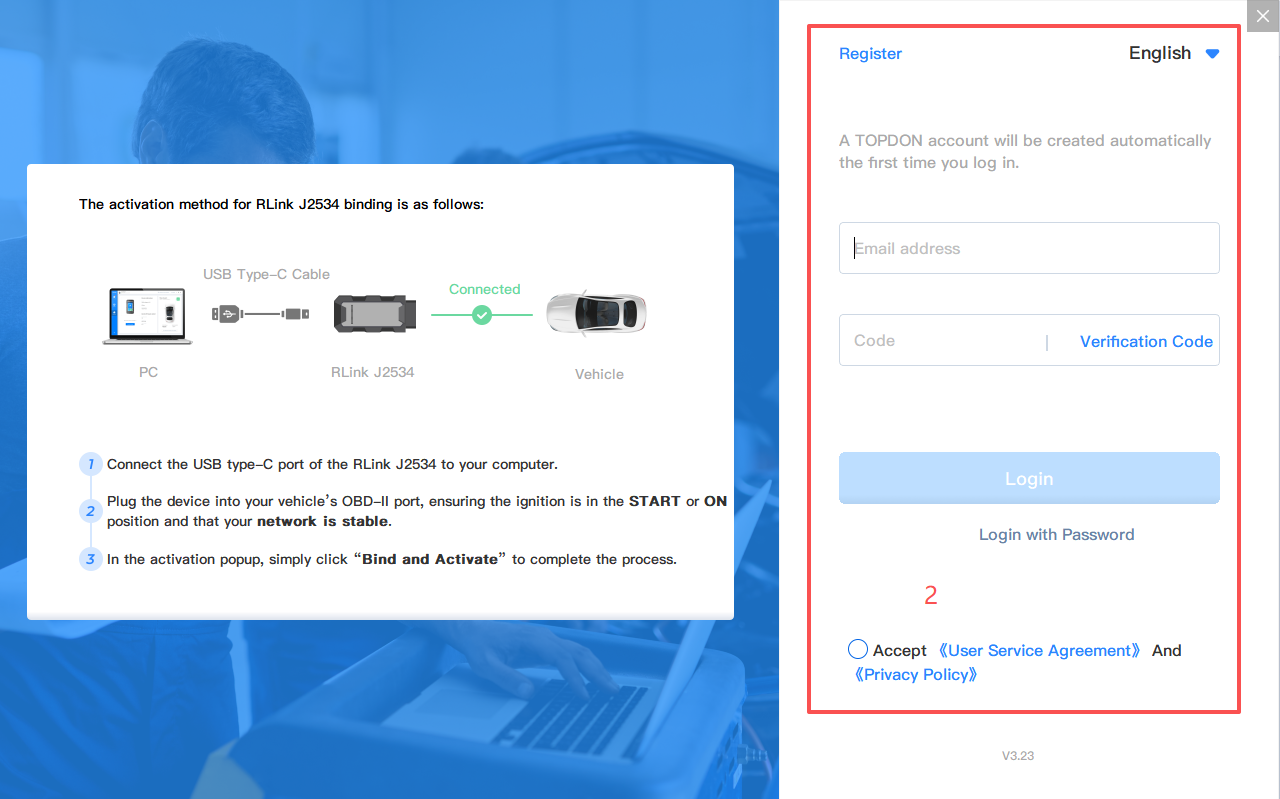

1. Open the RLink Platform.Clicking “Login to the Account” will automatically redirect you to the login page.Log in to the account bound to the RLink X7 device.

Note: After binding and activating the device and downloading the driver, you can use the RLink X7 device to perform vehicle diagnostics without opening the RLink Platform later.

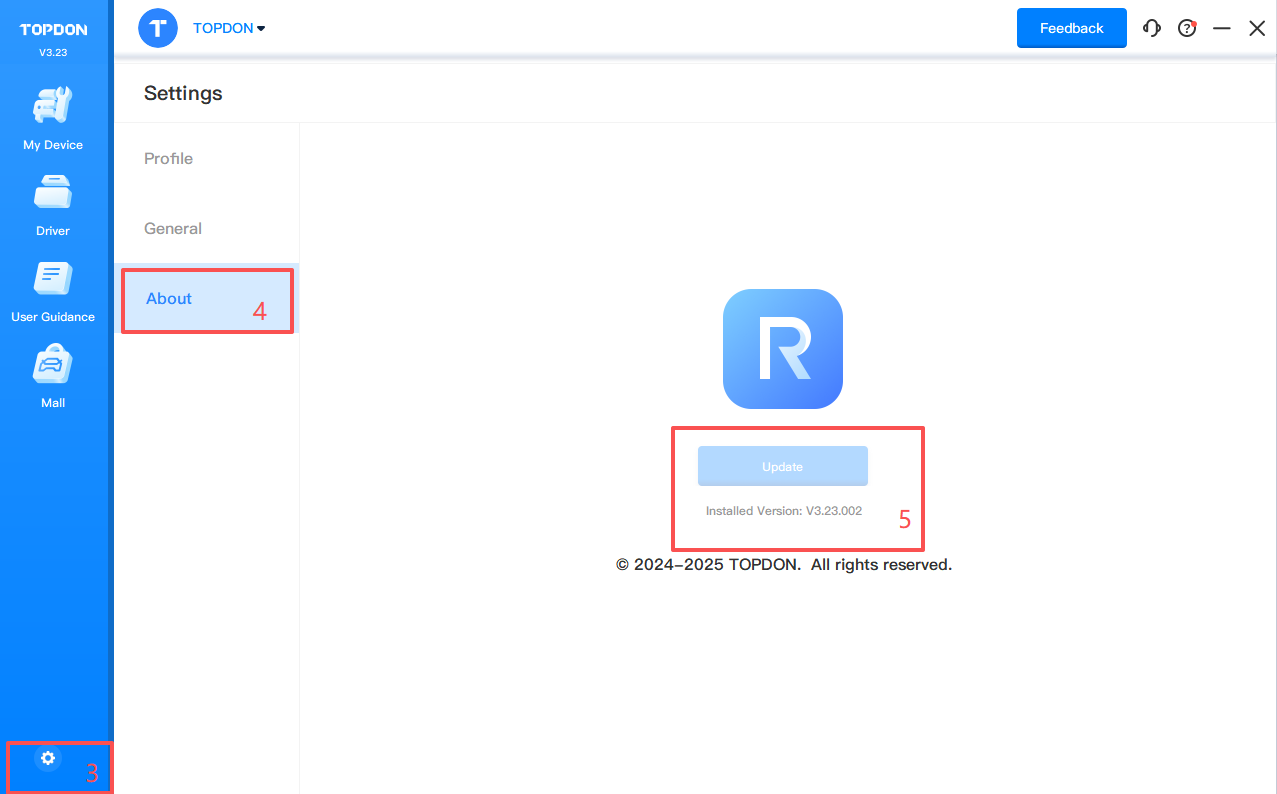

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

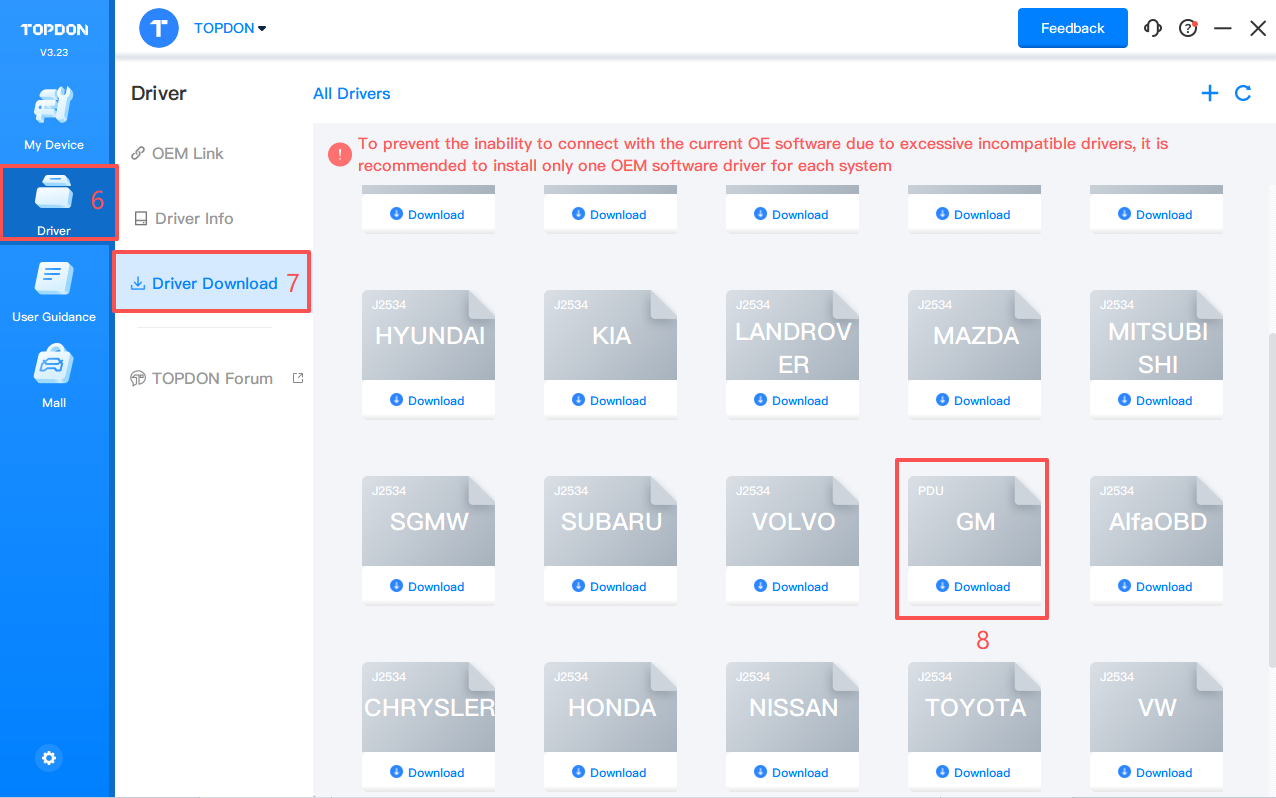

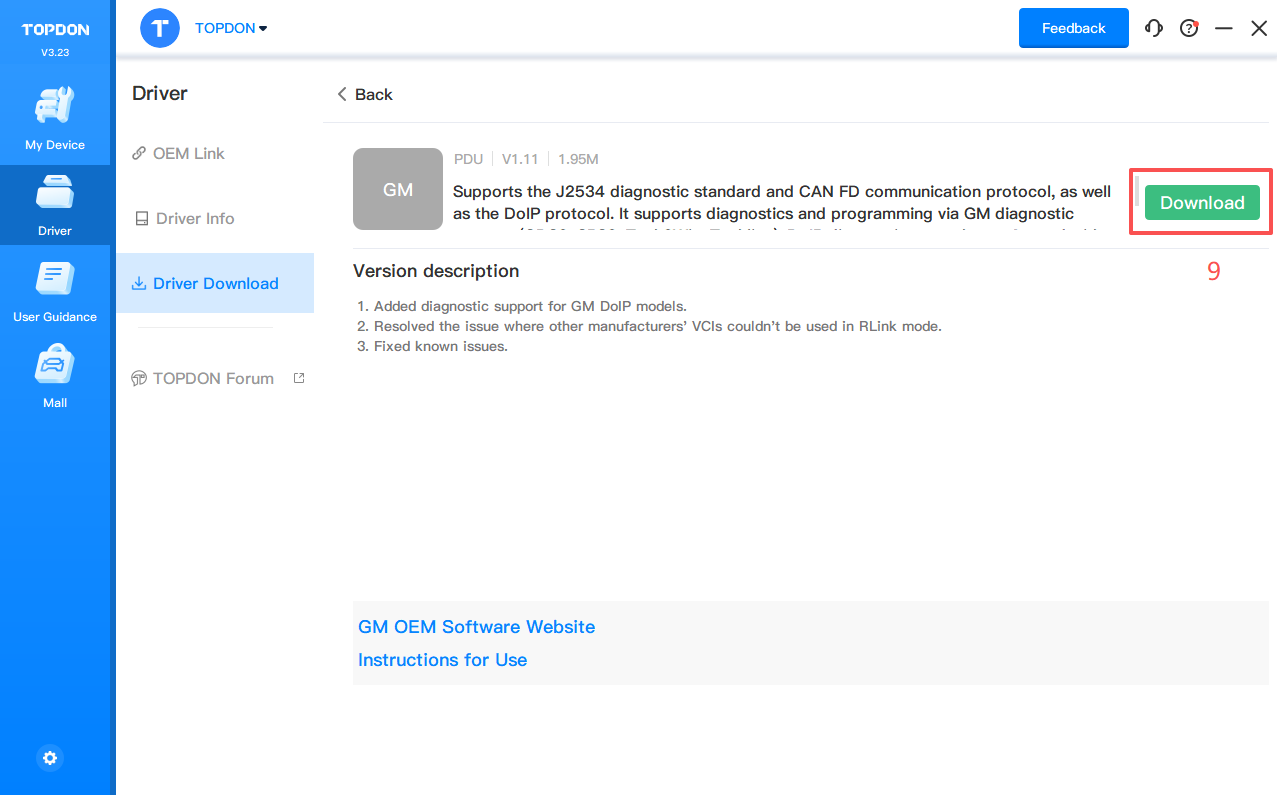

3. Click Driver > Driver Download. Click GM and click Download to download the driver.

Note:  Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

​

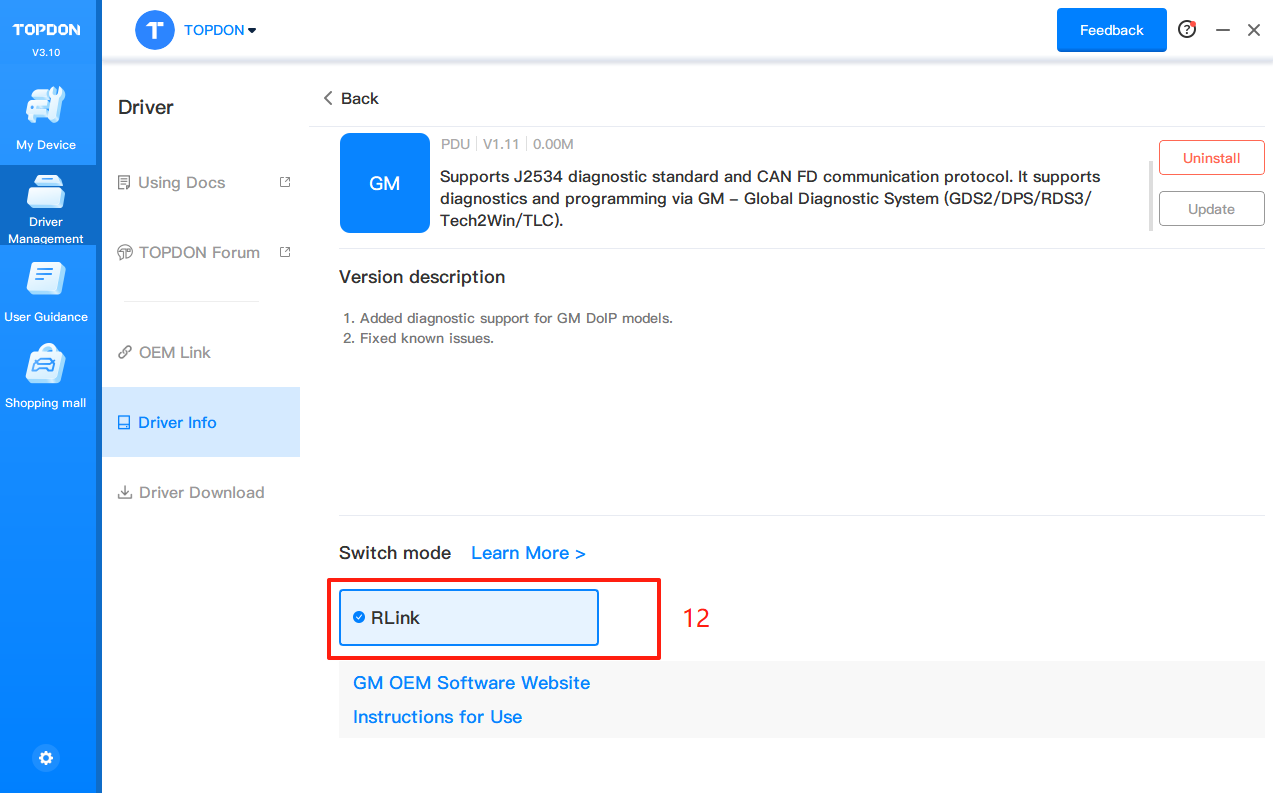

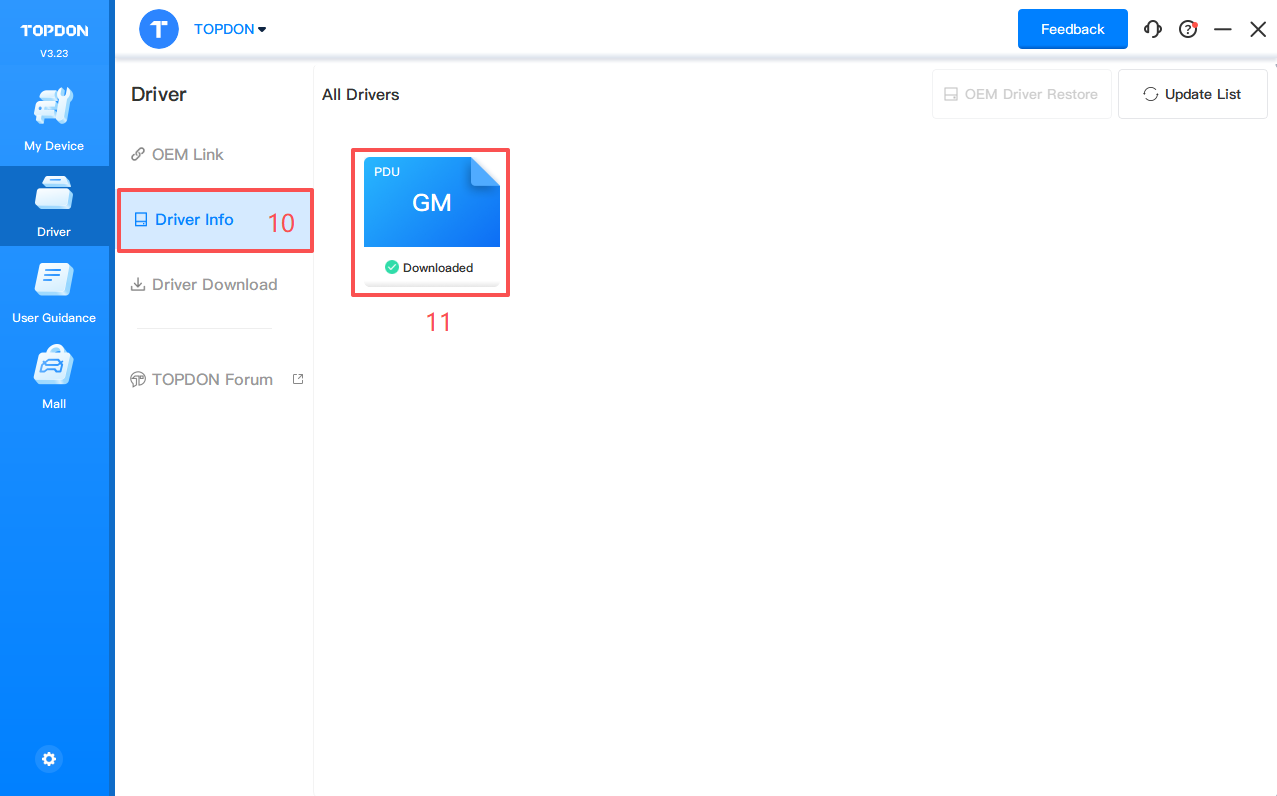

4. Click Driver > Driver Info. Then click GM to configure the driver mode.

5. When using RLink X7 devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

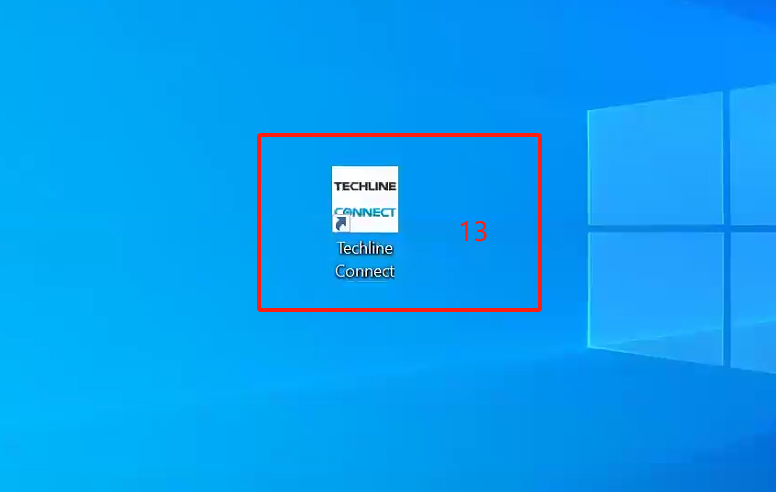

6. Double click the icon to open the Techline.

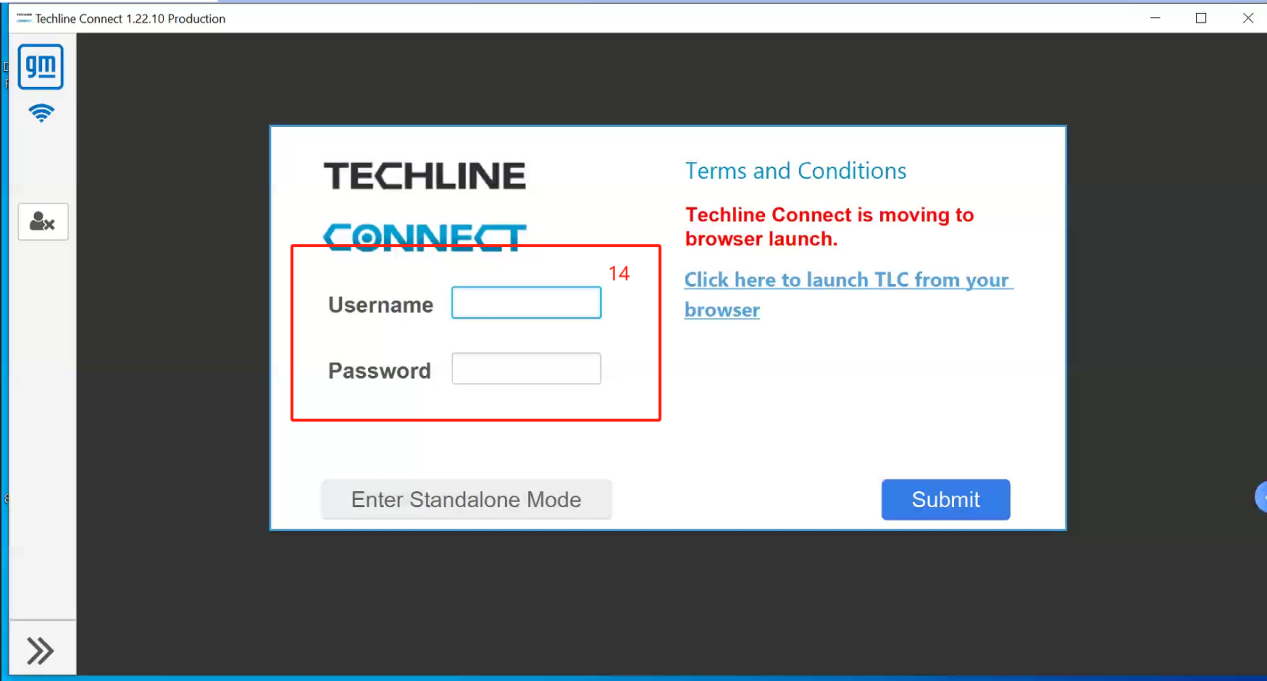

7. Enter the account that you purchased on the official website of GM.

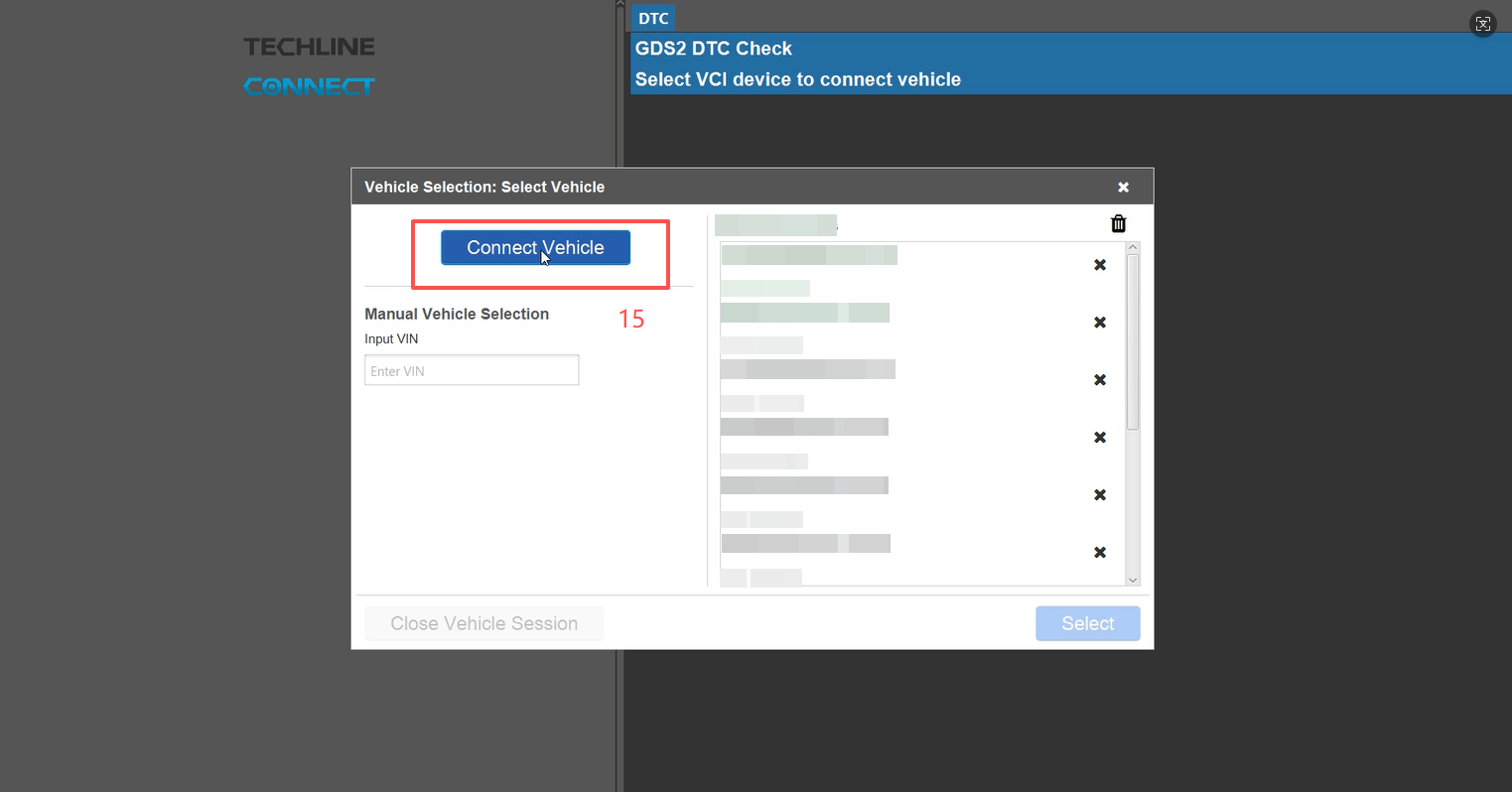

8. After entering the diagnostic page, click the ‘connection vehicle’ button.

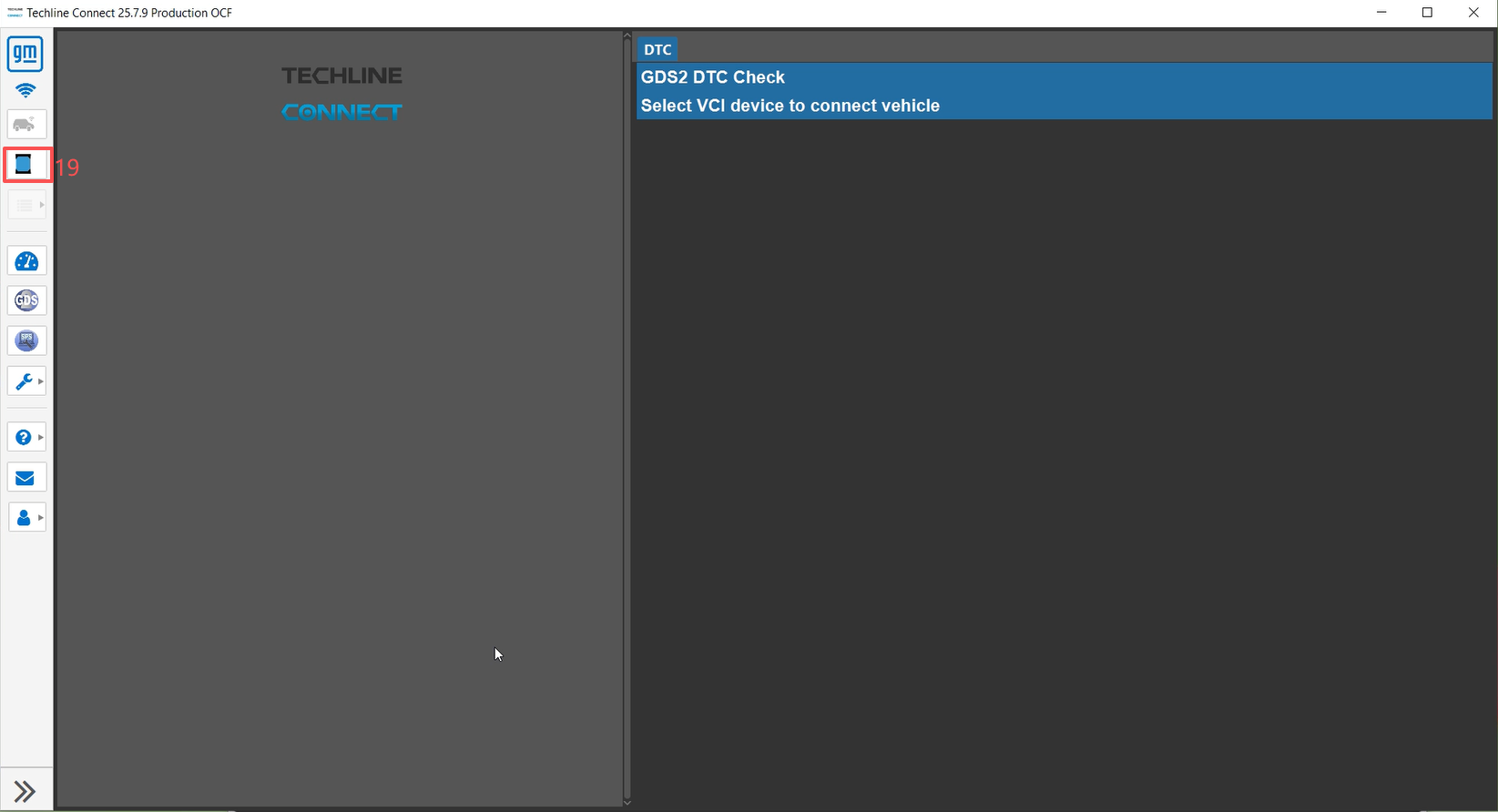

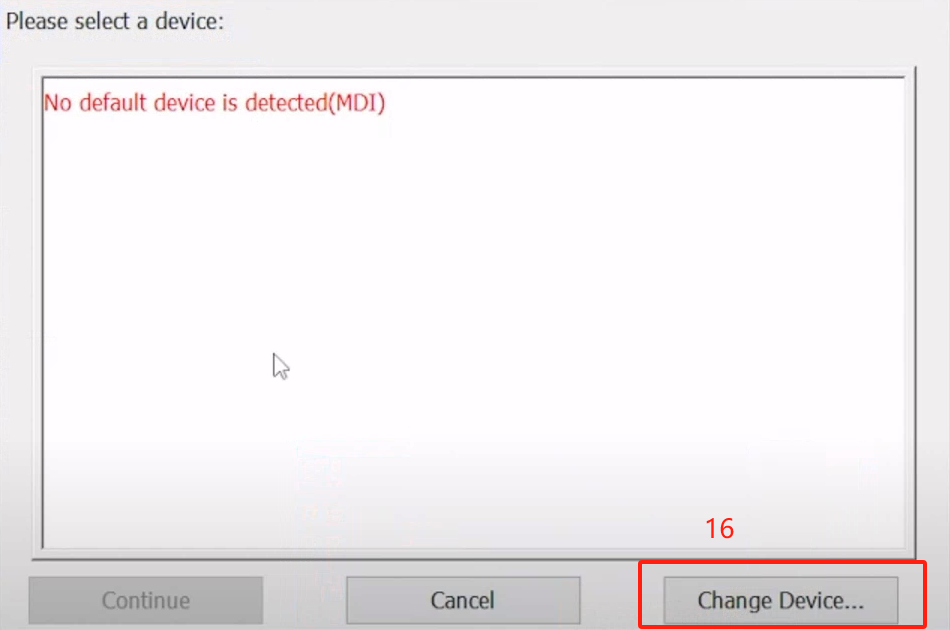

9. Then click the "Change Device" button.

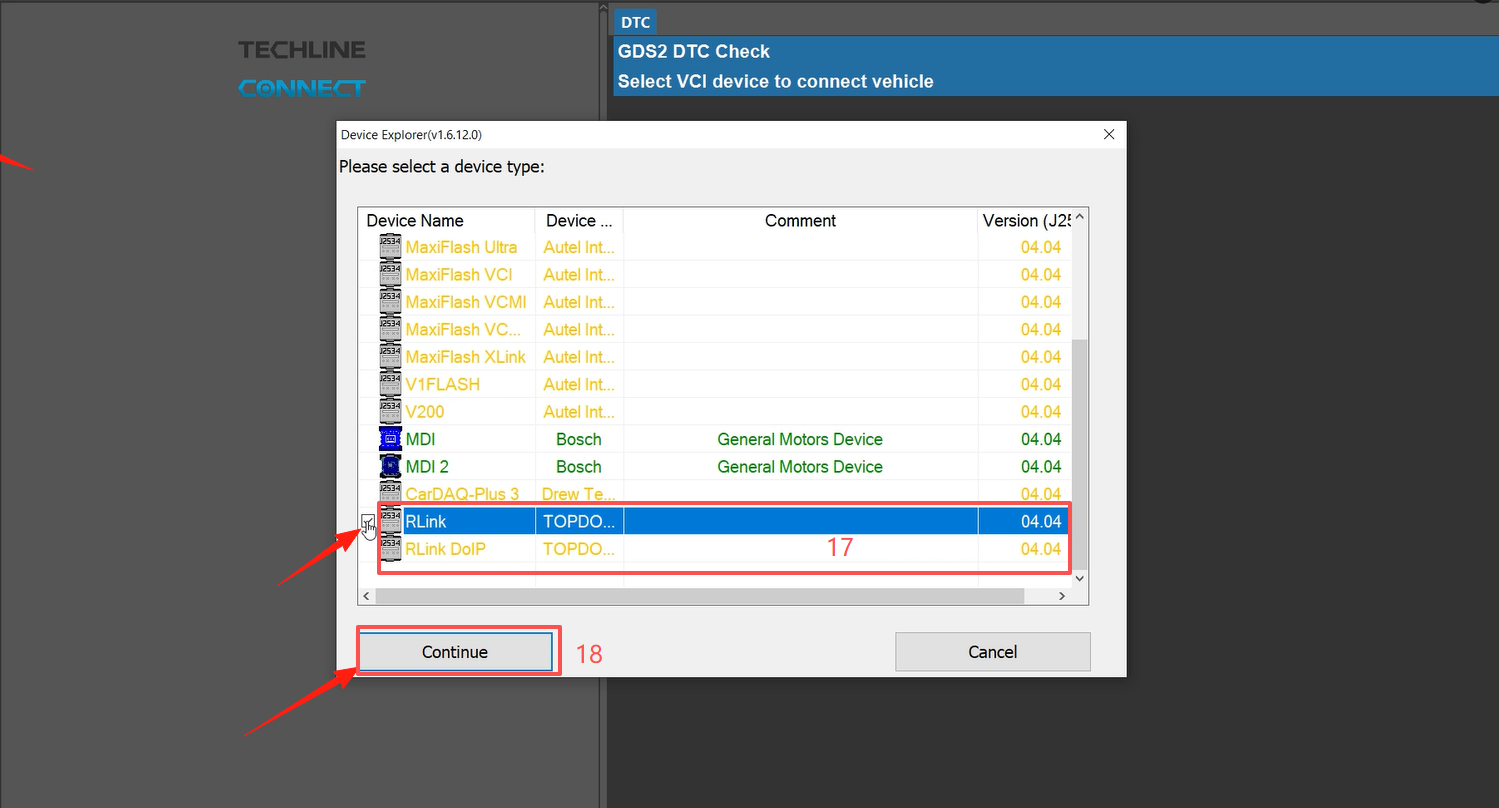

10. When multiple drivers appear, select the RLink driver and click the "Continue" button.



11. When the device is properly connected, the VCI icon will change from gray to blue.

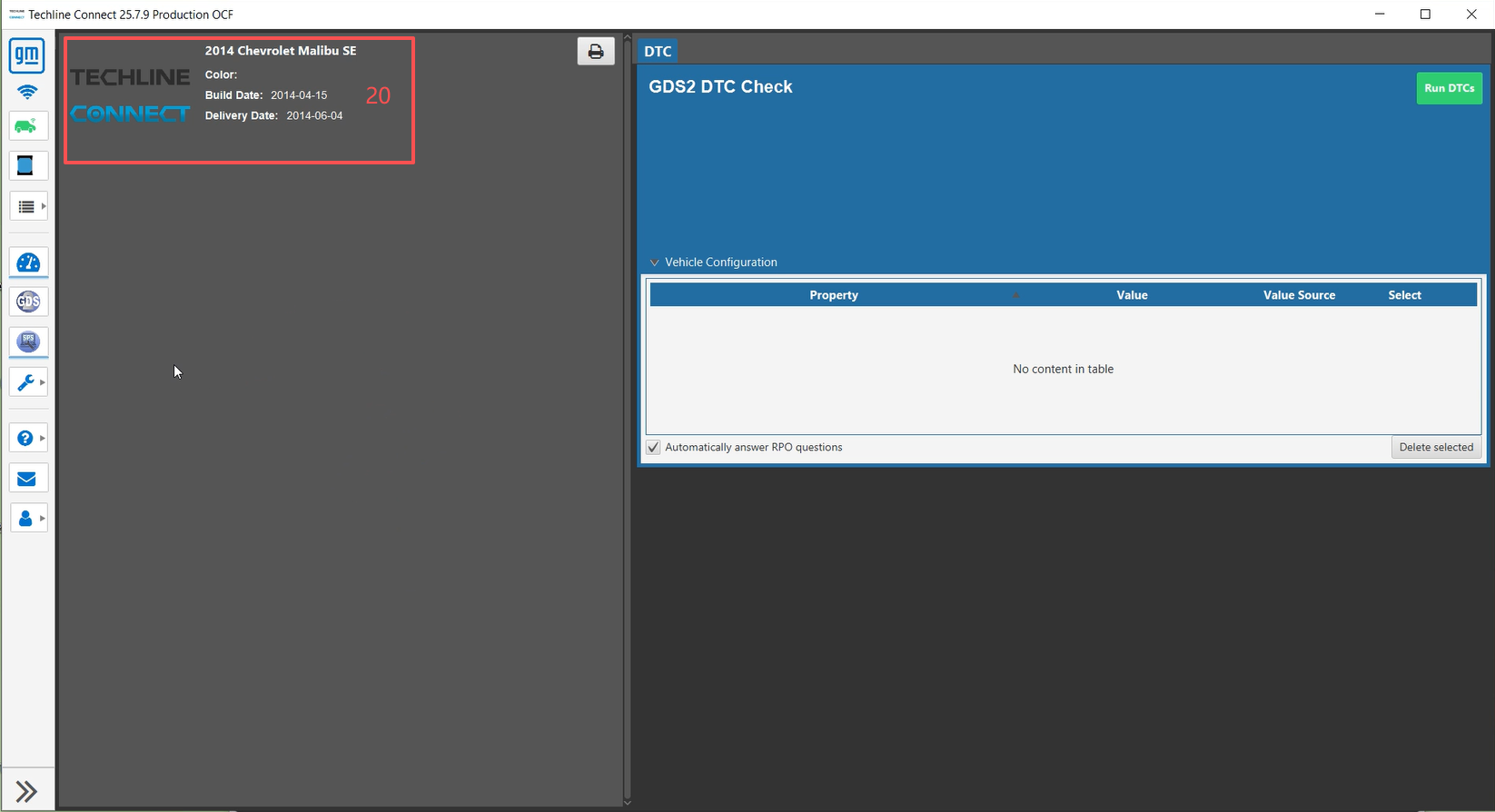

12. Once the VCI is successfully connected, the vehicle will be automatically identified. After the identification is completed, the vehicle information will be displayed.

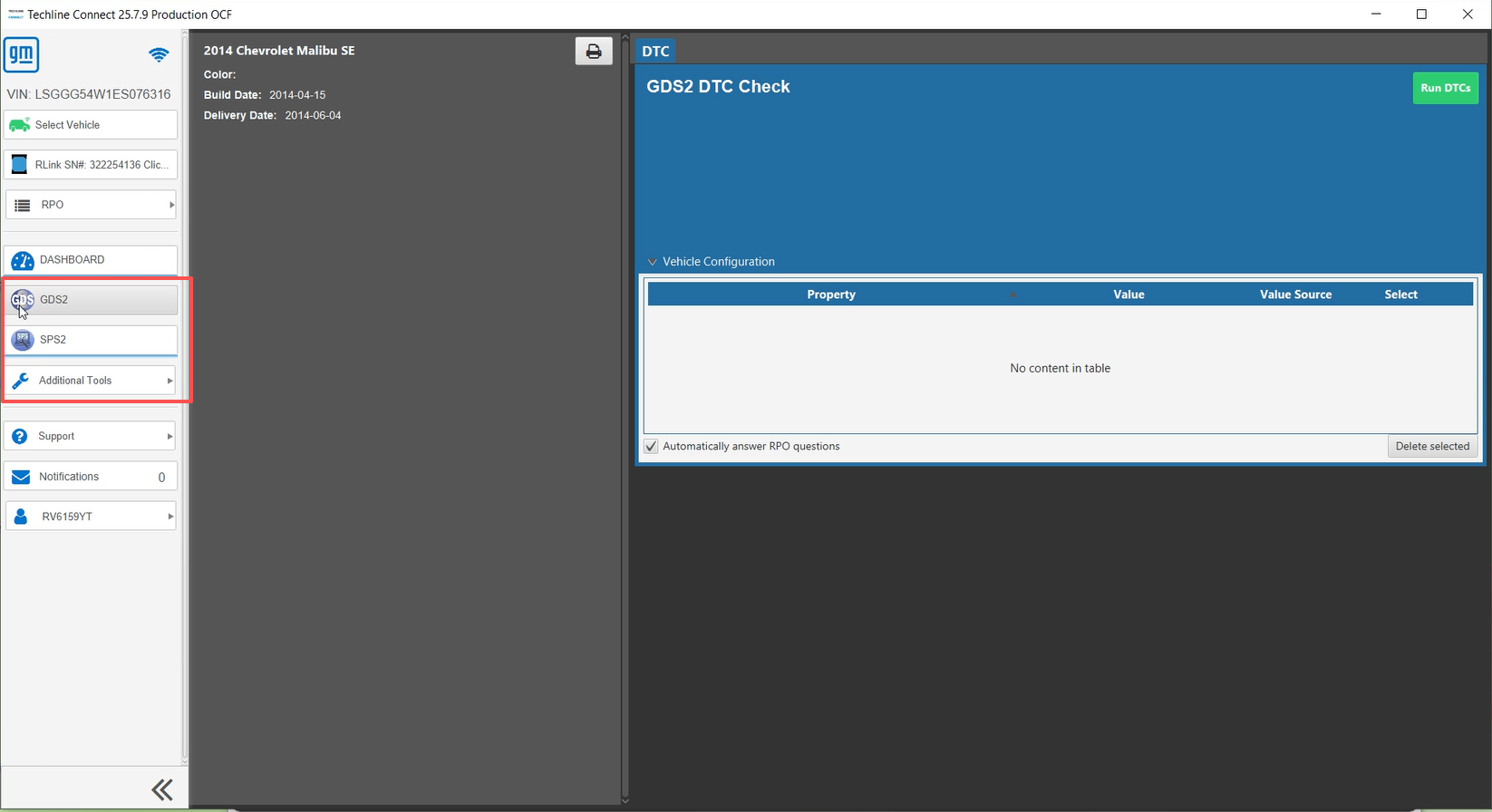

13. After the vehicle is successfully identified, select SPS programming or GDS2 diagnosis according to your needs. Note: The display of these two functions is related to the purchased account.

If you encounter any problems, you can send an email to support@topdon.com.
