VW OEM Software with ONE VCI Connection Instructions

Tips：You need to install the VW/AUDI OEM software before use. If it's not installed yet, you can download and install it from the official VW/AUDI website.

VW:https://erwin.vw.com/erwin/showHome.do

AUDI:https://erwin.audiusa.com/erwin/showHome.do

Note: When used with OEM software, the ONE VCI does not support the DoIP protocol and cannot be used for ECU diagnostics or programming.

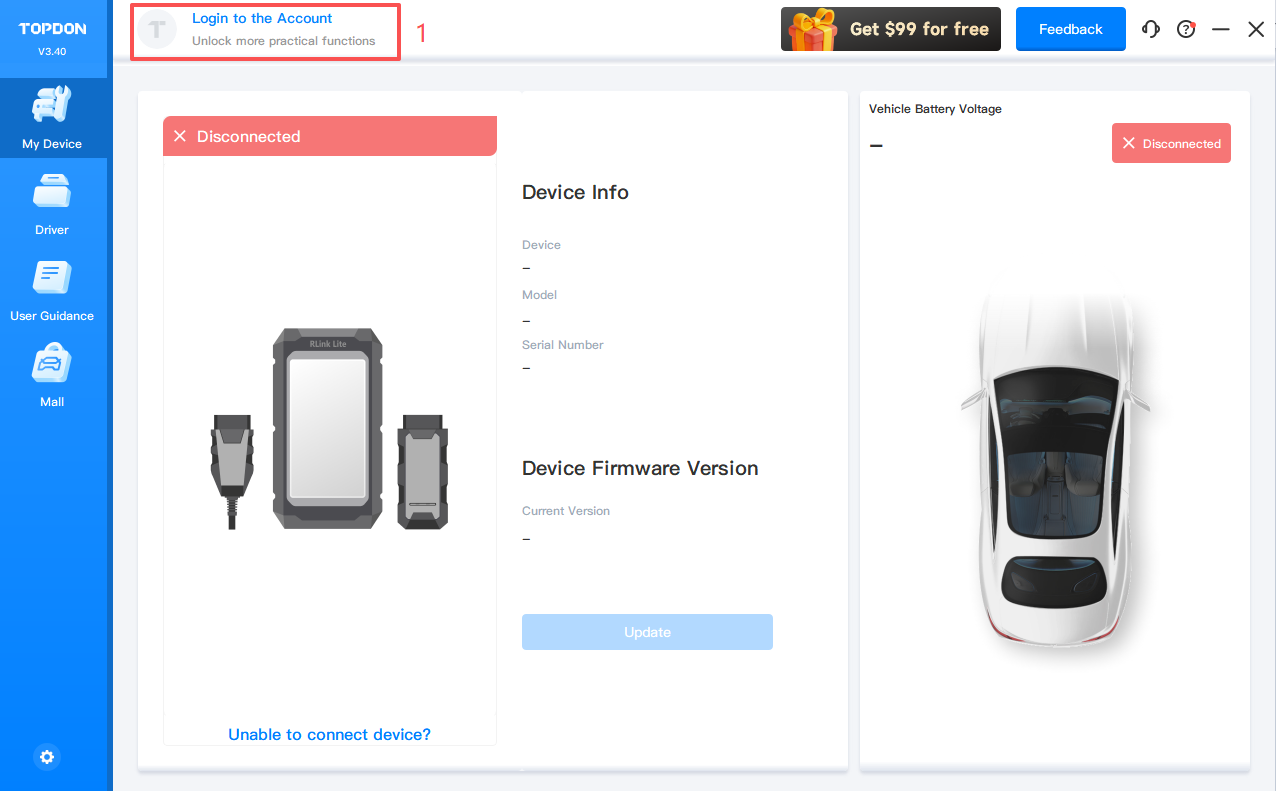

1. Open the RLink Platform.Clicking “Login to the Account” will automatically

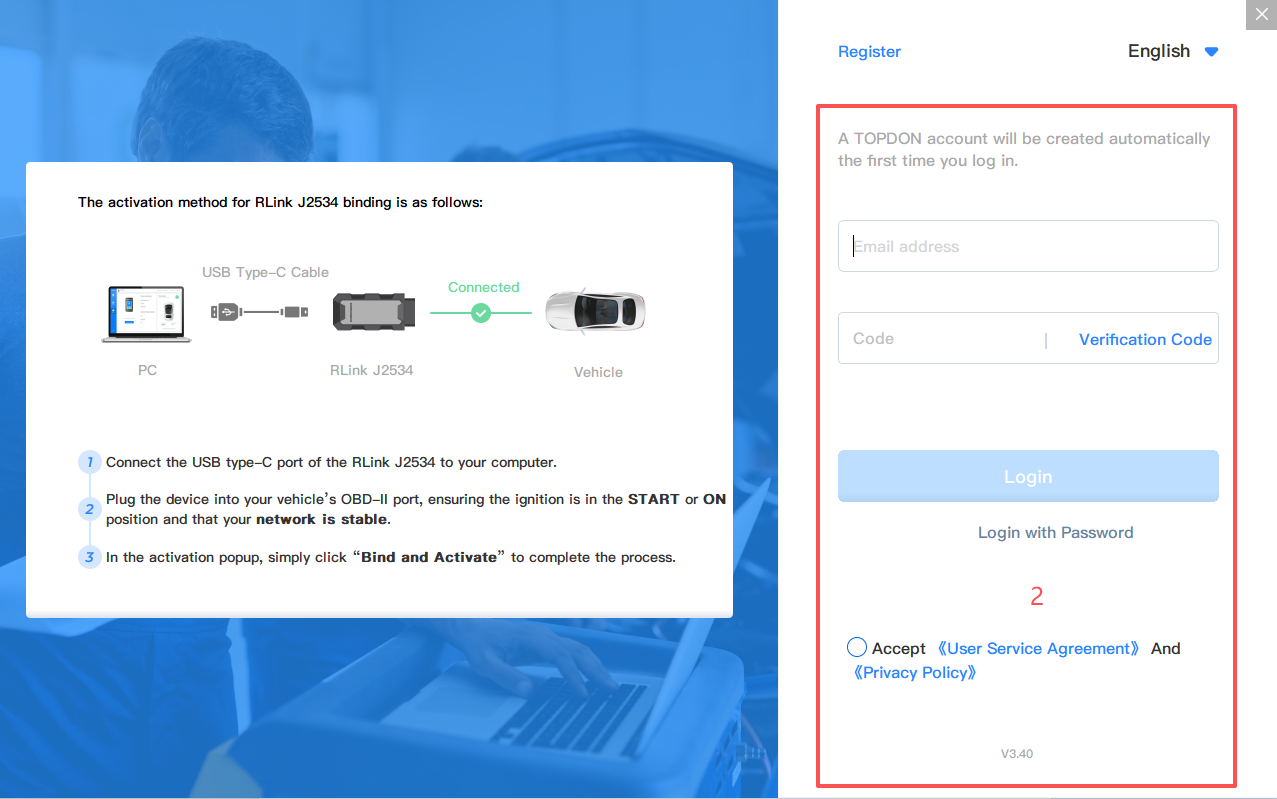

redirect you to the login page.Log in to the account bound to the ONE VCI device.

Note: After binding and activating the device and downloading the driver, you can use the ONE VCI device to perform vehicle diagnostics without opening the RLink Platform later.

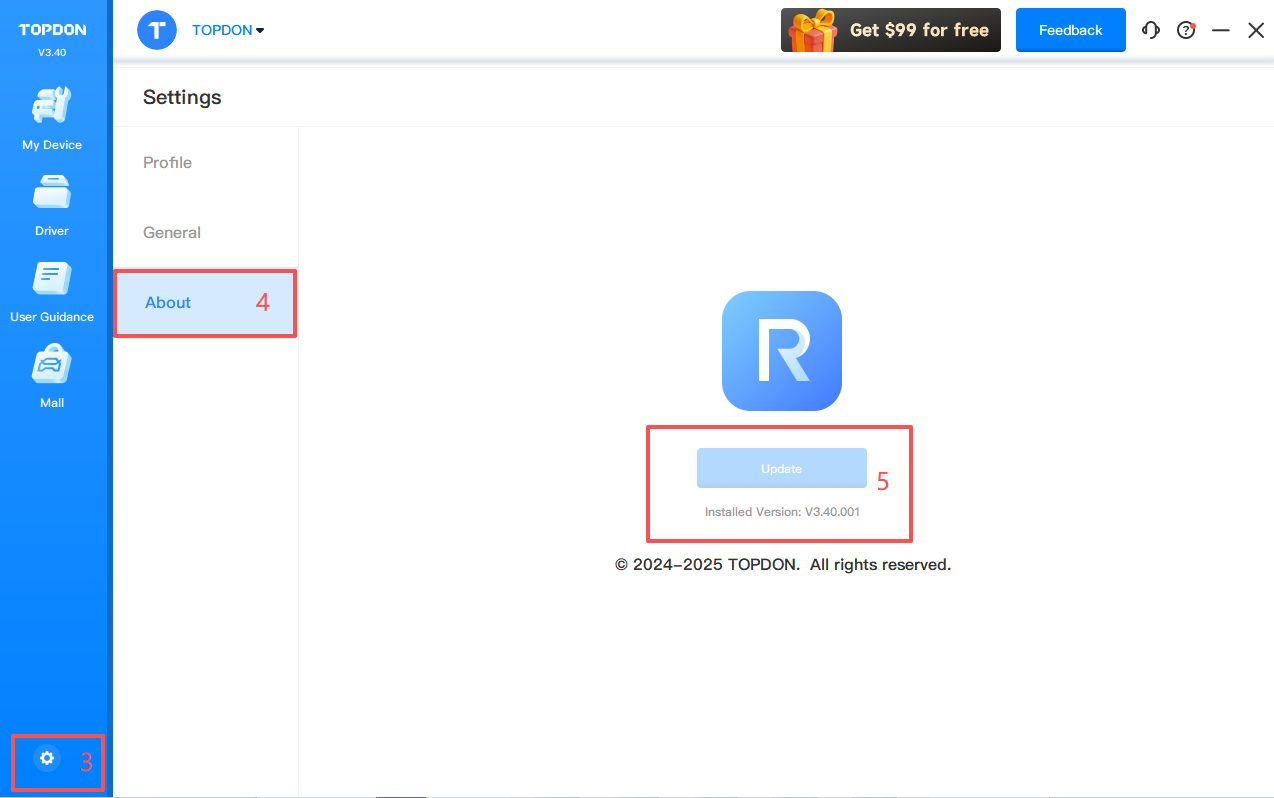

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

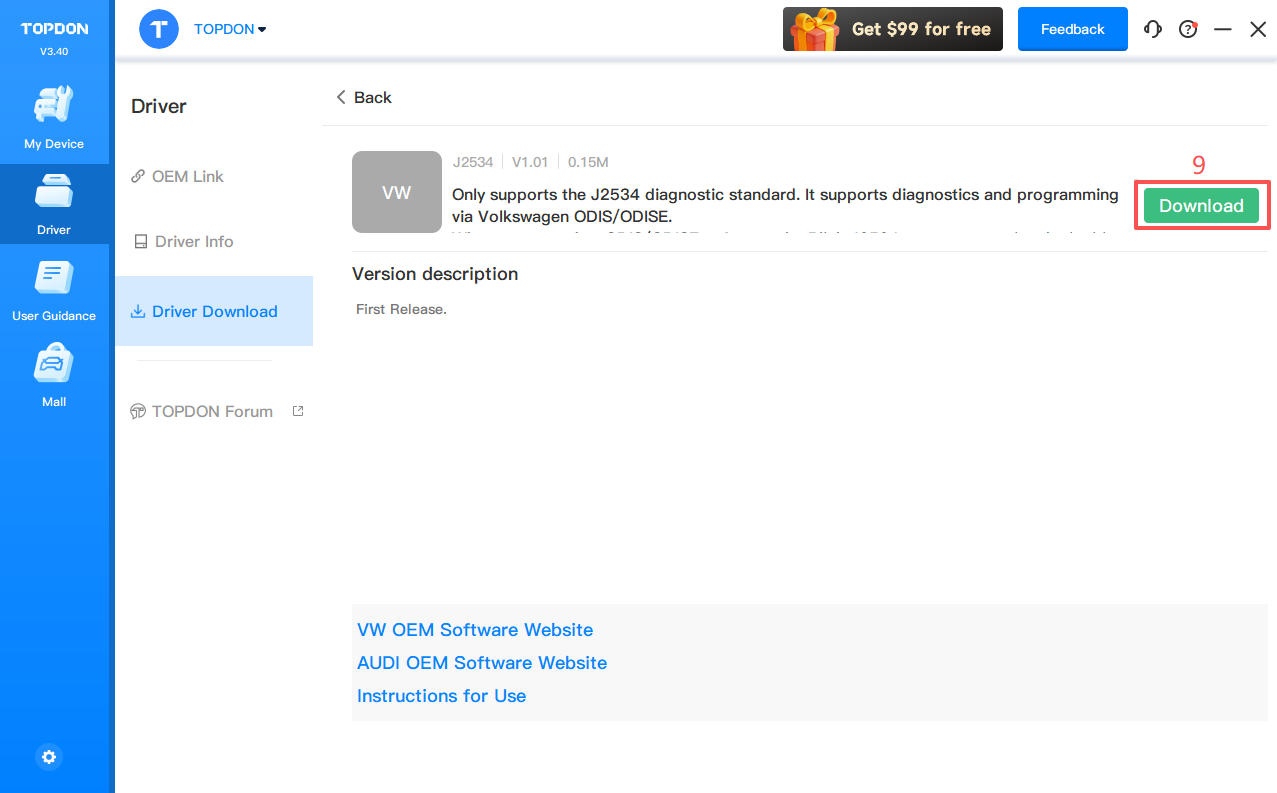

3. Click Driver > Driver Download. Click VW and click Download to download the driver.

Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

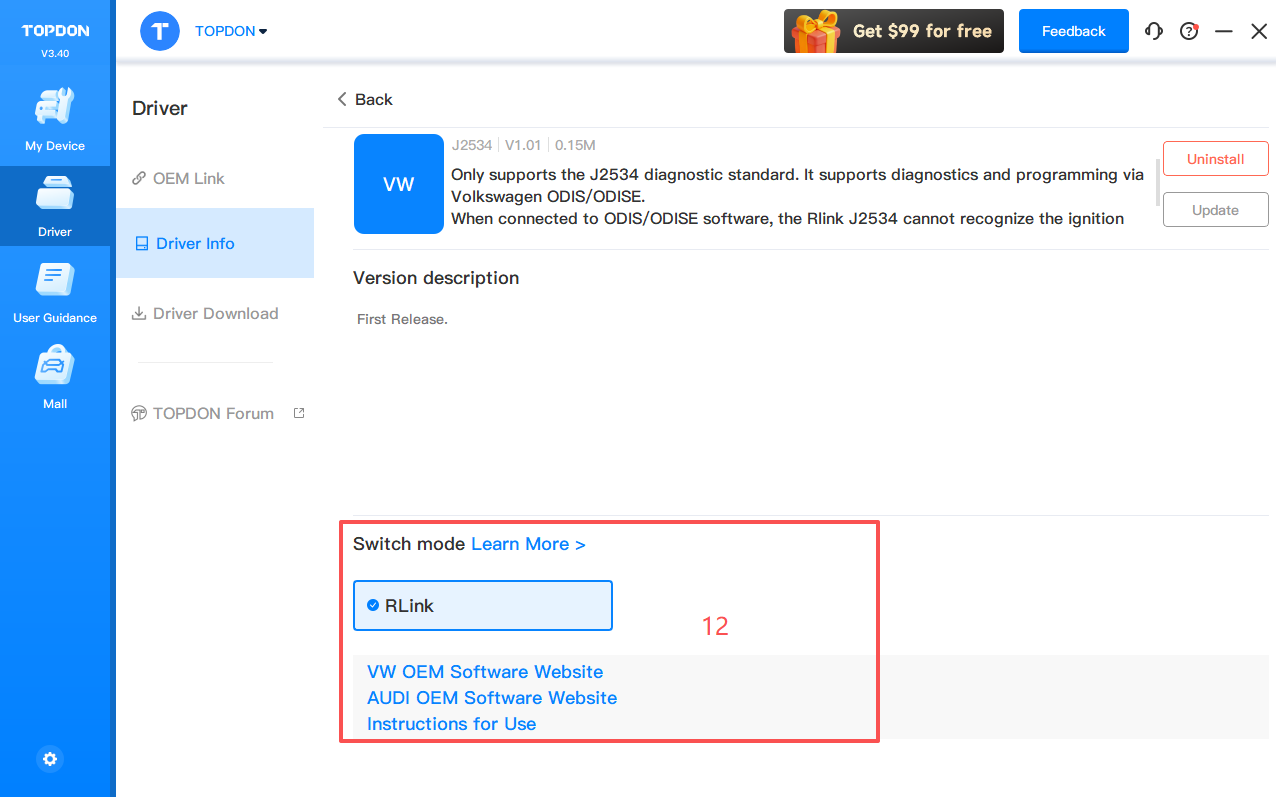

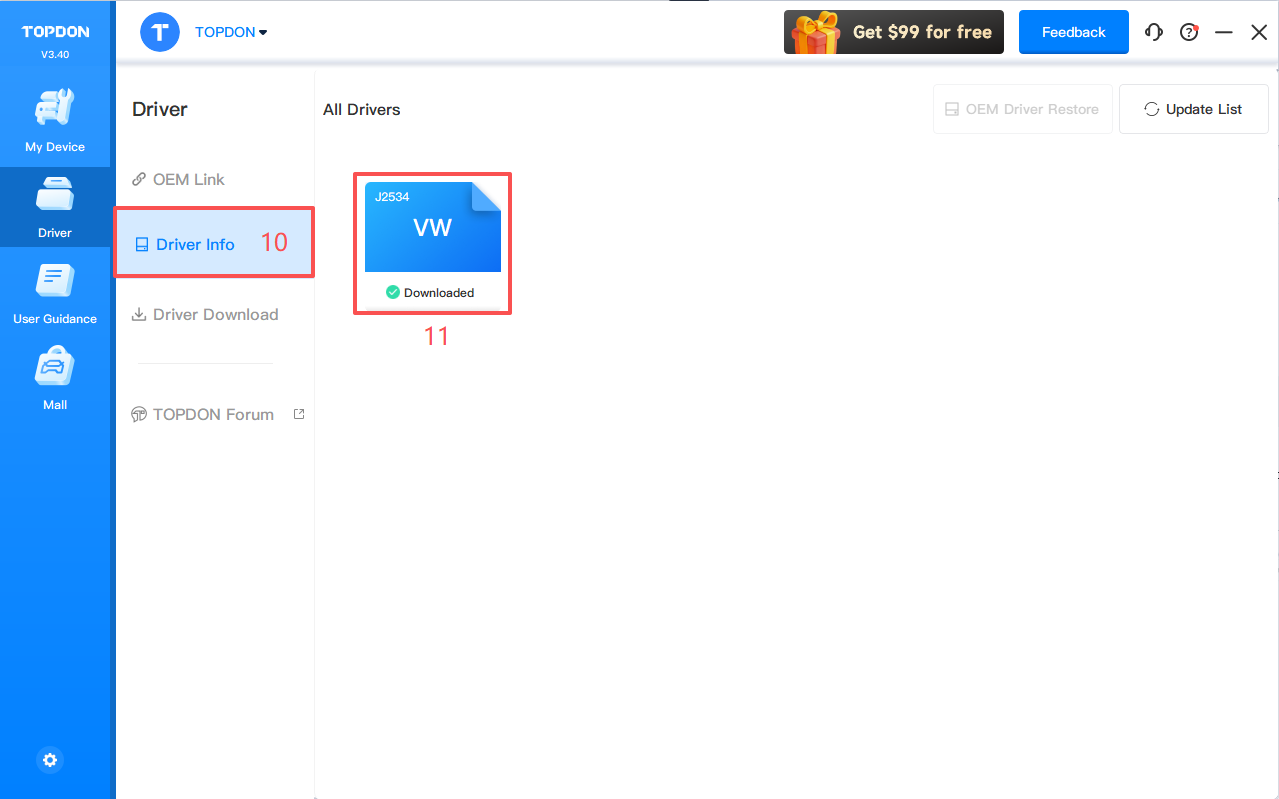

4. Click Driver > Driver Info. Then click VW to configure the driver mode.

5. When using ONE VCI devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

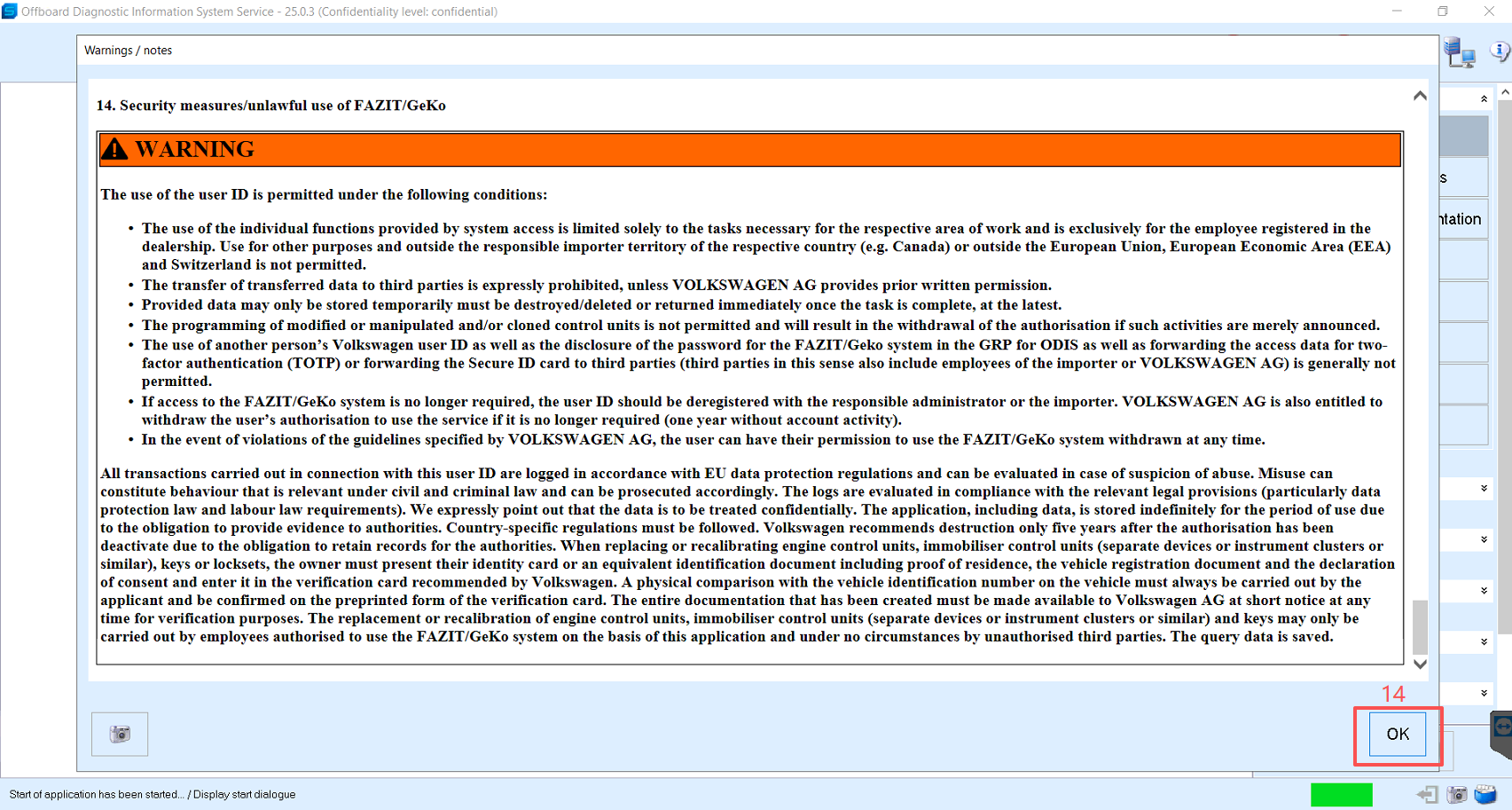

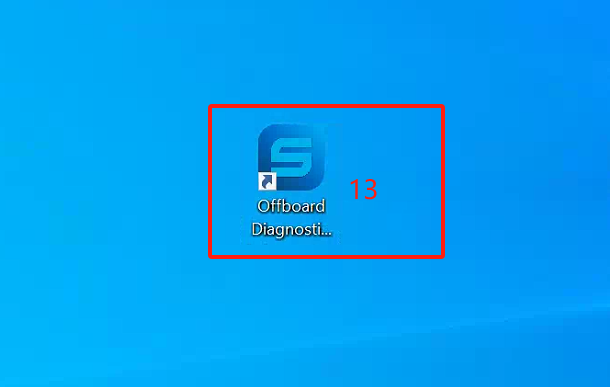

7.Double click the icon to open the ODIS.

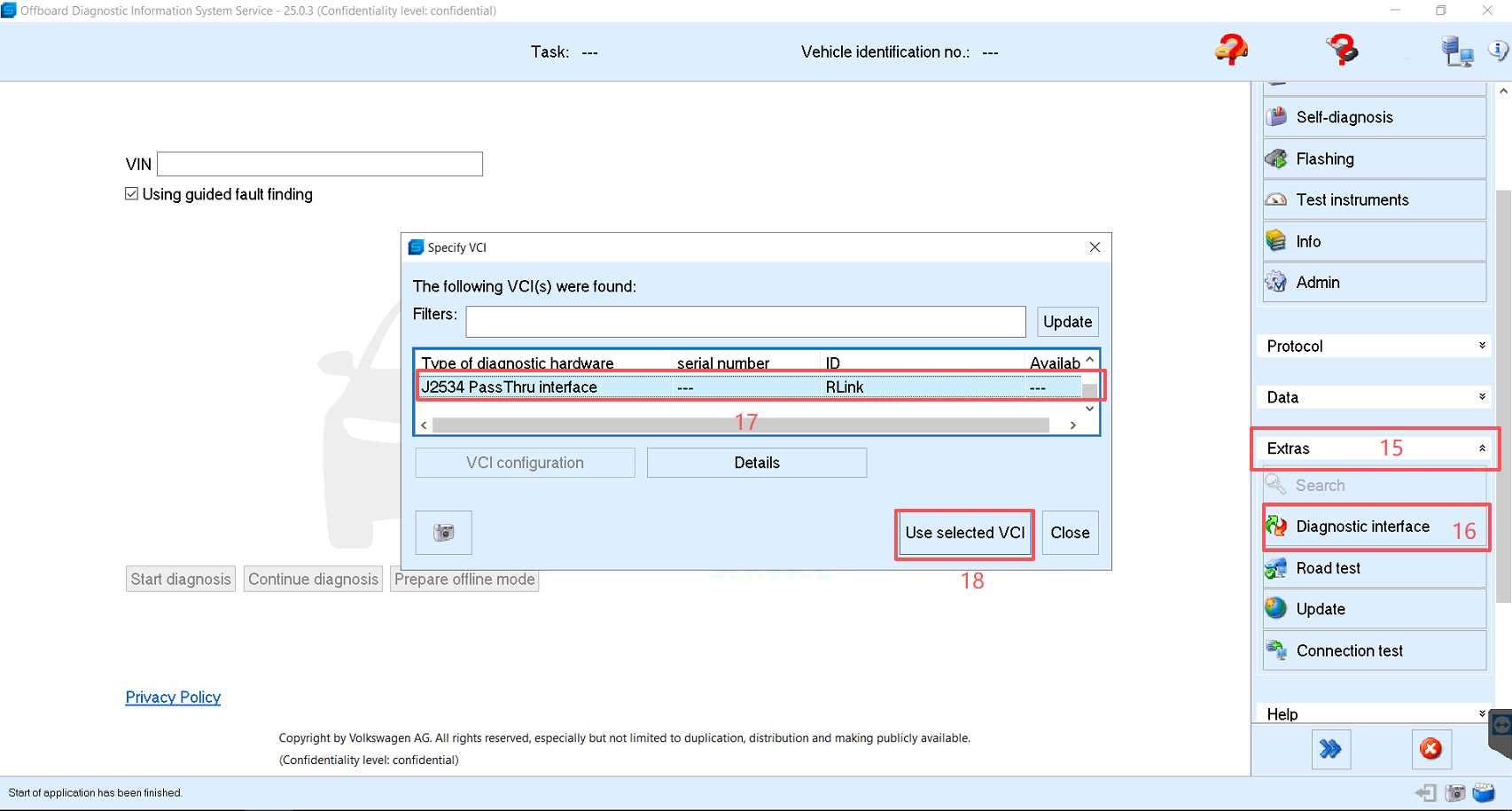

8.Choose RLink driver mode following the order below.

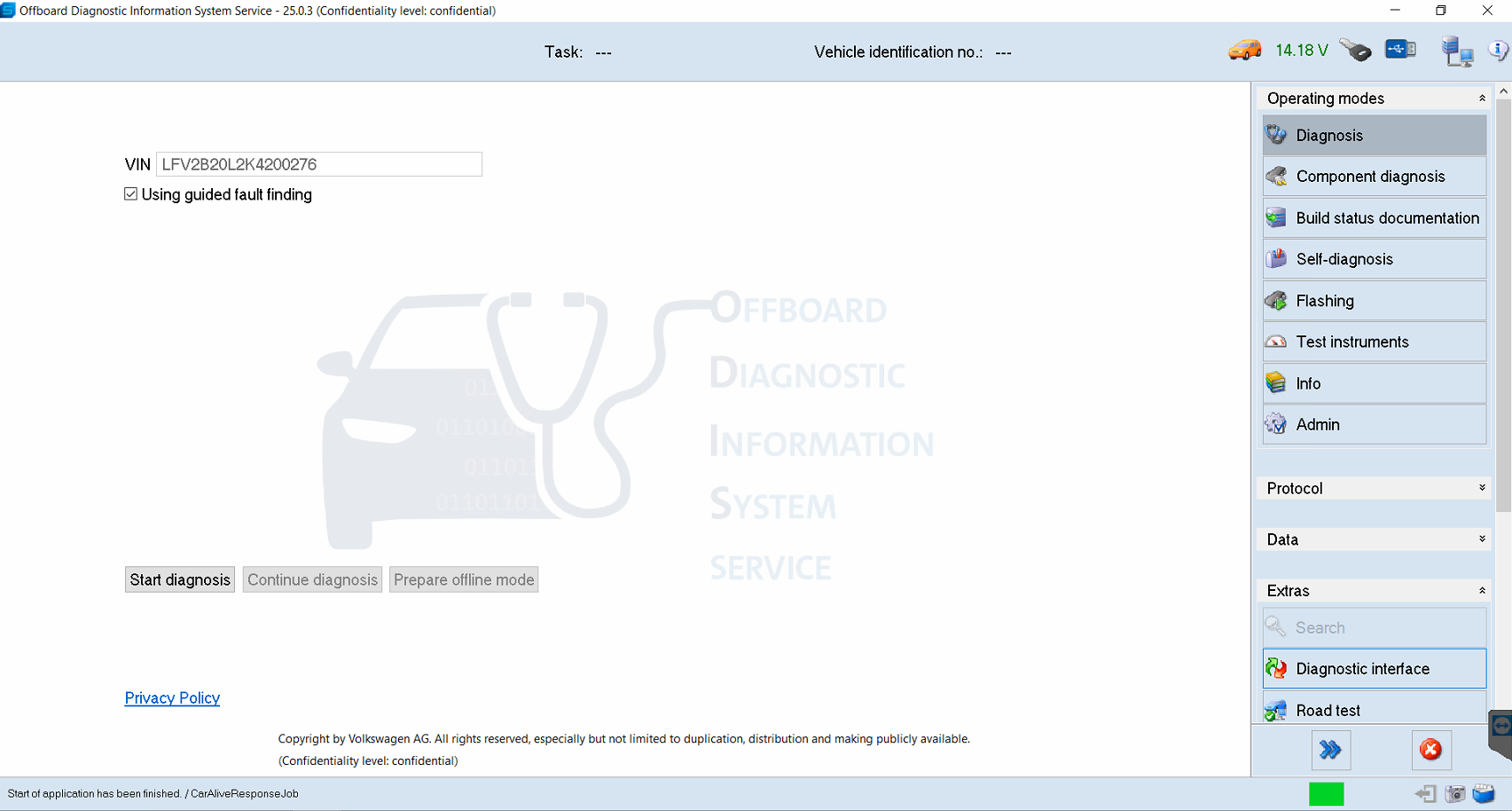

9.After the VIN is detected, click Start diagnosis.

If you encounter any problems, you can send an email to support@topdon.com.
