TOYOTA OEM Software with RLink J2534 Connection Instructions

TOYOTA OEM Software with RLink J2534 Connection Instructions

Tips：You need to install the TOYOTA OEM software before use. If it's not installed yet, you can download and install it from the official TOYOTA website.

https://techinfo.toyota.com/

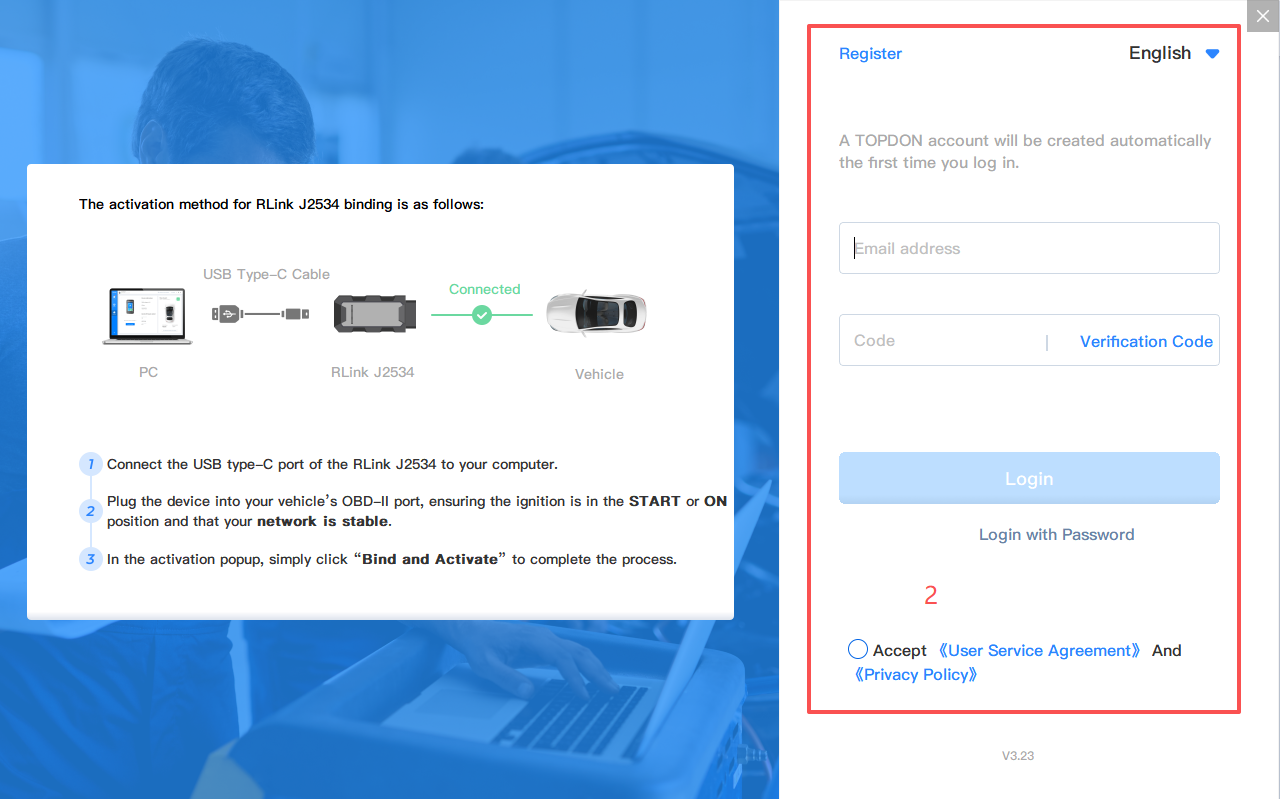

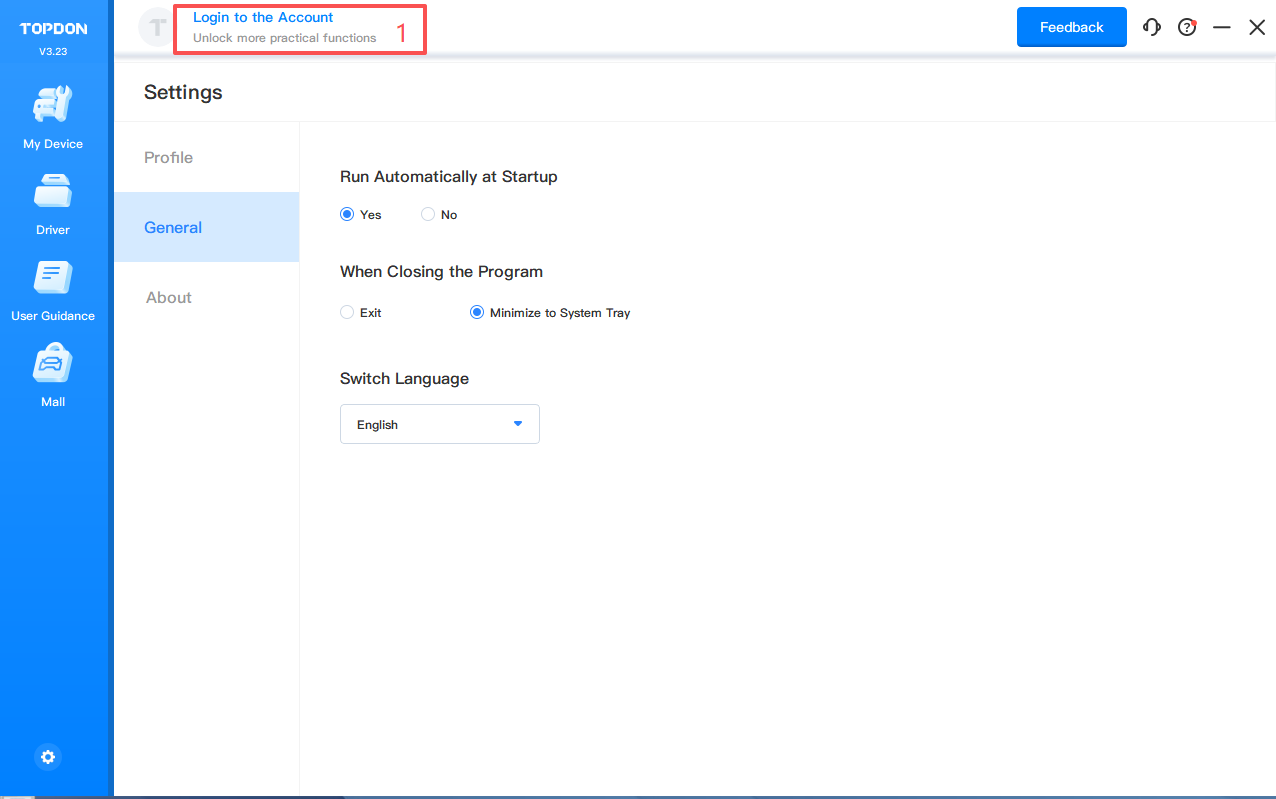

1. Open the RLink Platform.Clicking “Login to the Account” will automatically

redirect you to the login page.Log in to the account bound to the RLink J2534 device.

Note: After binding and activating the device and downloading the driver, you can use the RLink J2534 device to perform vehicle diagnostics without opening the RLink Platform later.

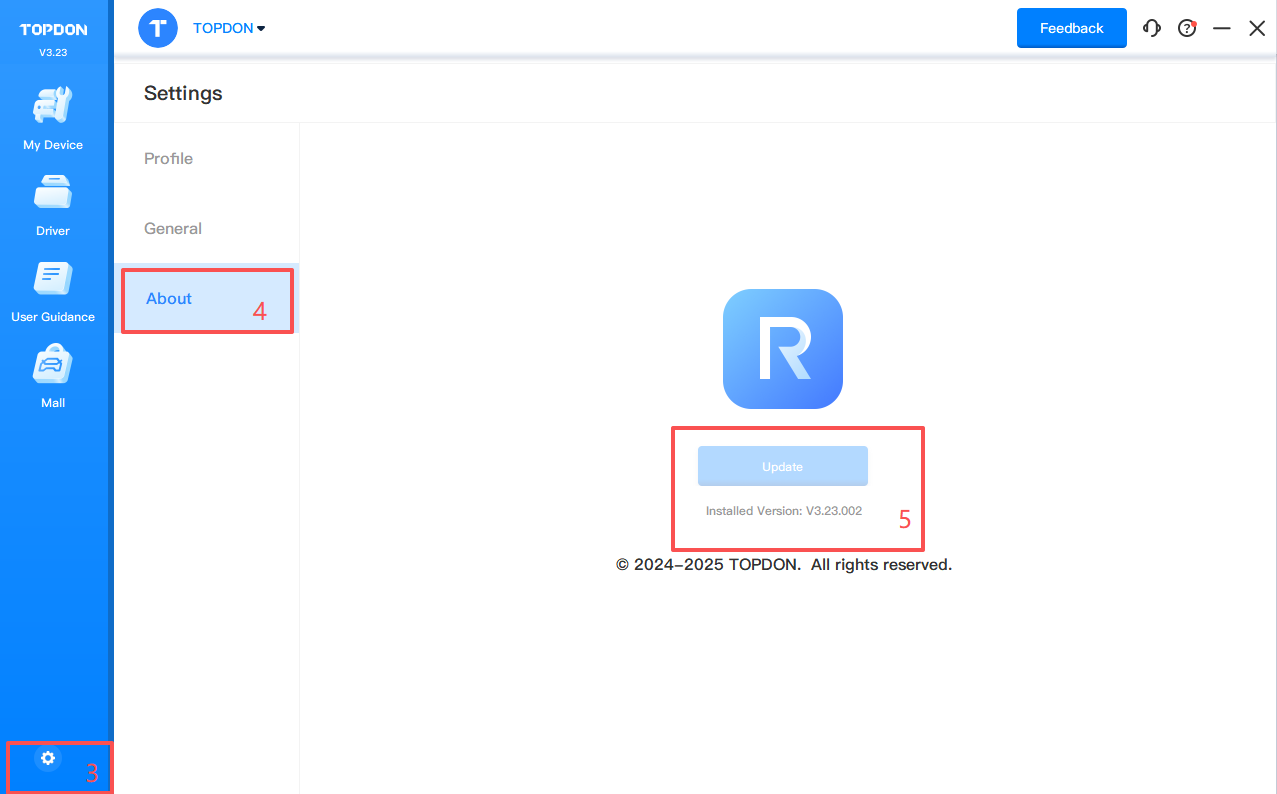

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

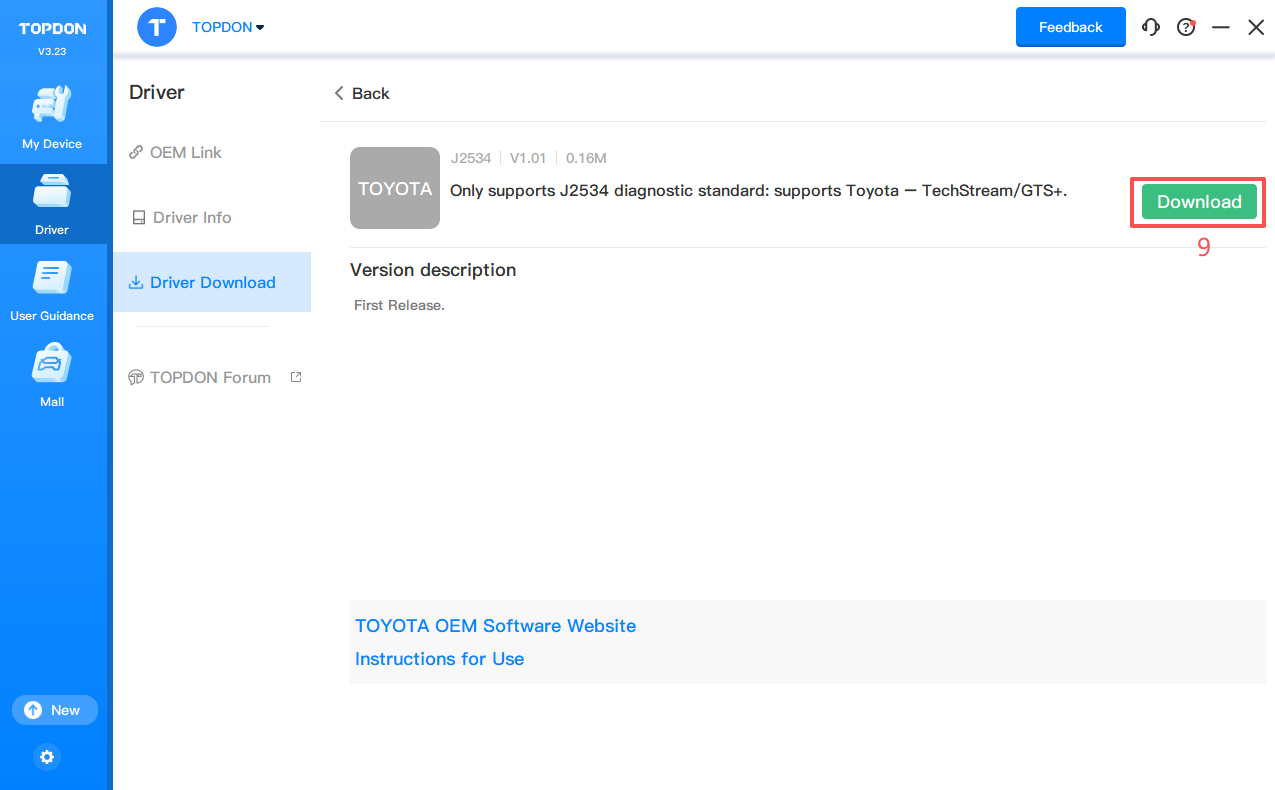

3. Click Driver  > Driver Download. Click TOYOTA and click Download to download the driver.

Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

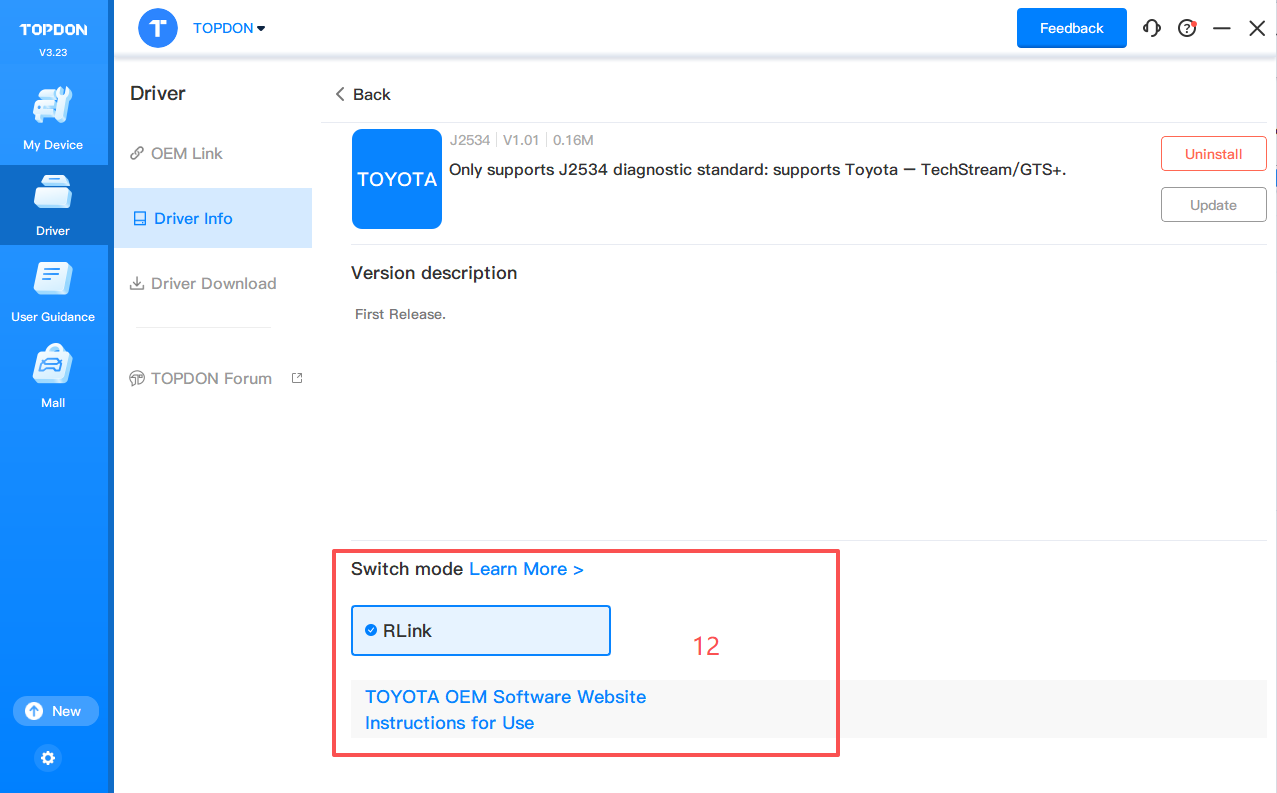

4. Click Driver > Driver Info. Then click TOYOTA to check the driver mode.



5. When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

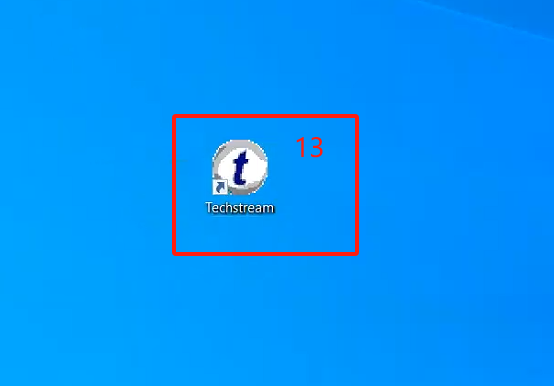

6. Double click the icon to open the Techstream.

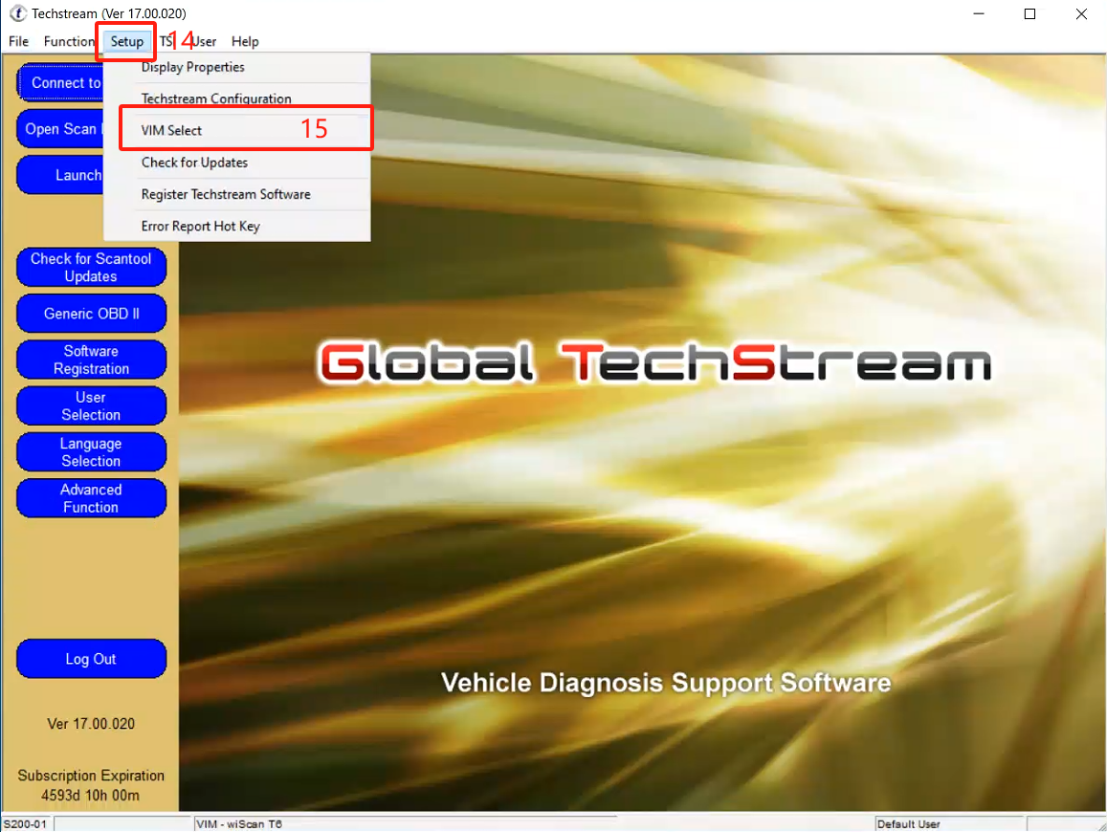

7. Click Setup and click VIM Select. Then choose RLink driver mode from the interface setup drop-down list and click OK.



​

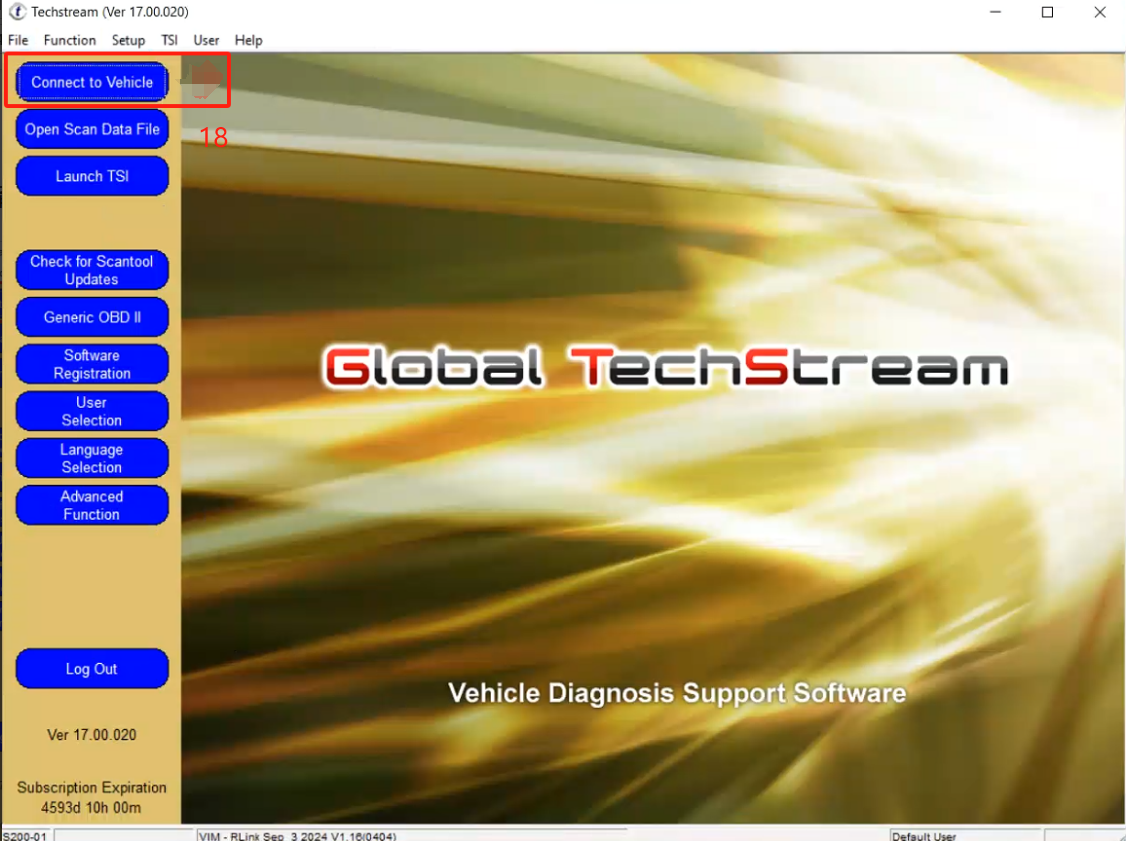

8. Click Connect to Vehicle to start vehicle diagnostics.





If you encounter any problems, you can send an email to support@topdon.com.
