NISSAN OEM Software with RLink X7 Connection Instructions

Tips：You need to install the NISSAN OEM software before use. If it's not installed yet, you can download and install it from the official NISSAN website.

https://www.nissan-techinfo.com/home.aspx

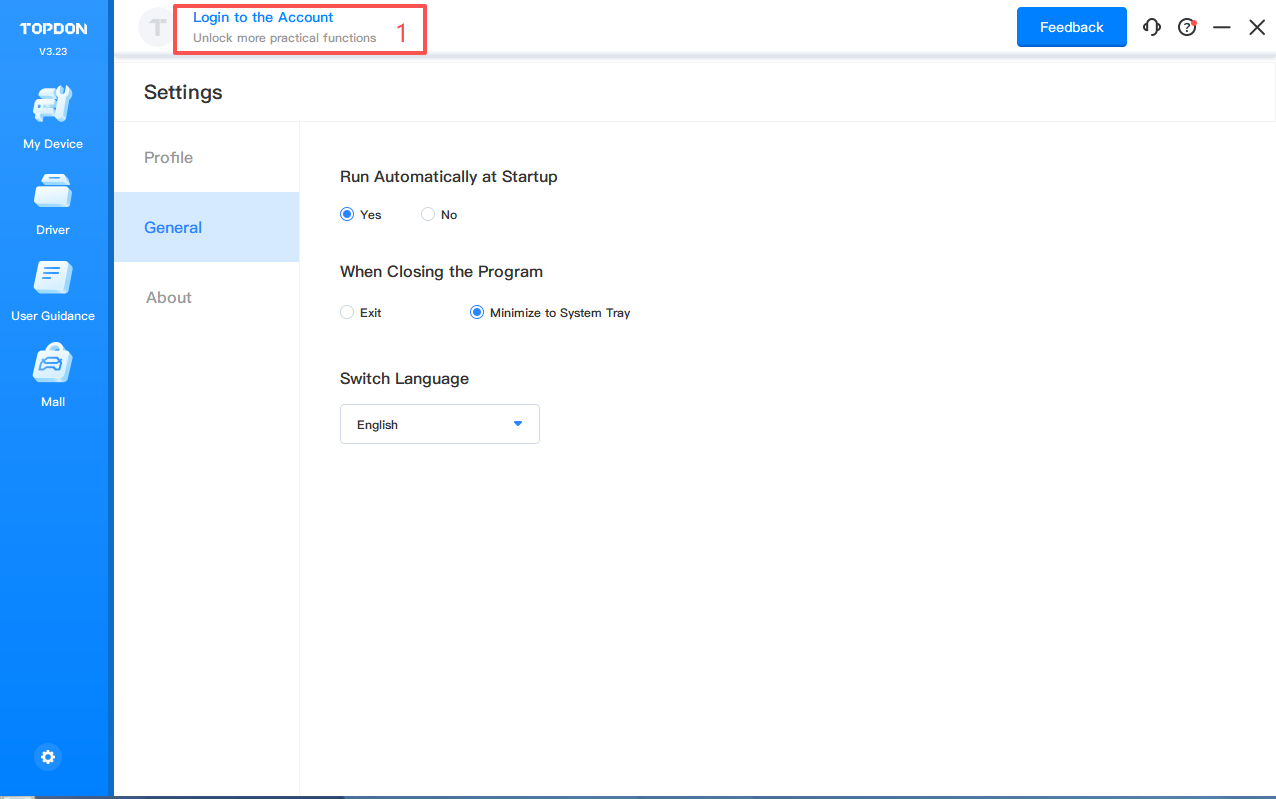

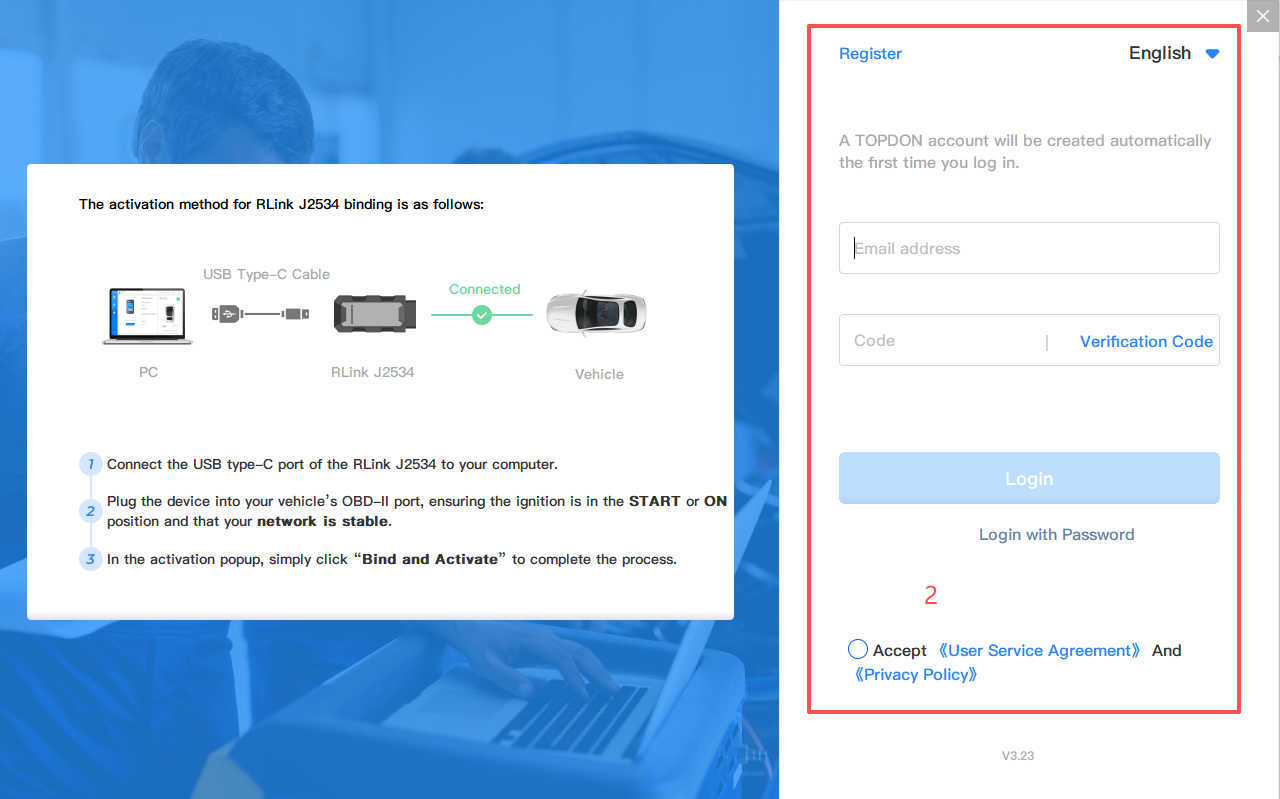

1. Open the RLink Platform.Clicking “Login to the Account” will automatically redirect you to the login page.Log in to the account bound to the RLink X7 device.

Note: After binding and activating the device and downloading the driver, you can use the RLink X7 device to perform vehicle diagnostics without opening the RLink Platform later.

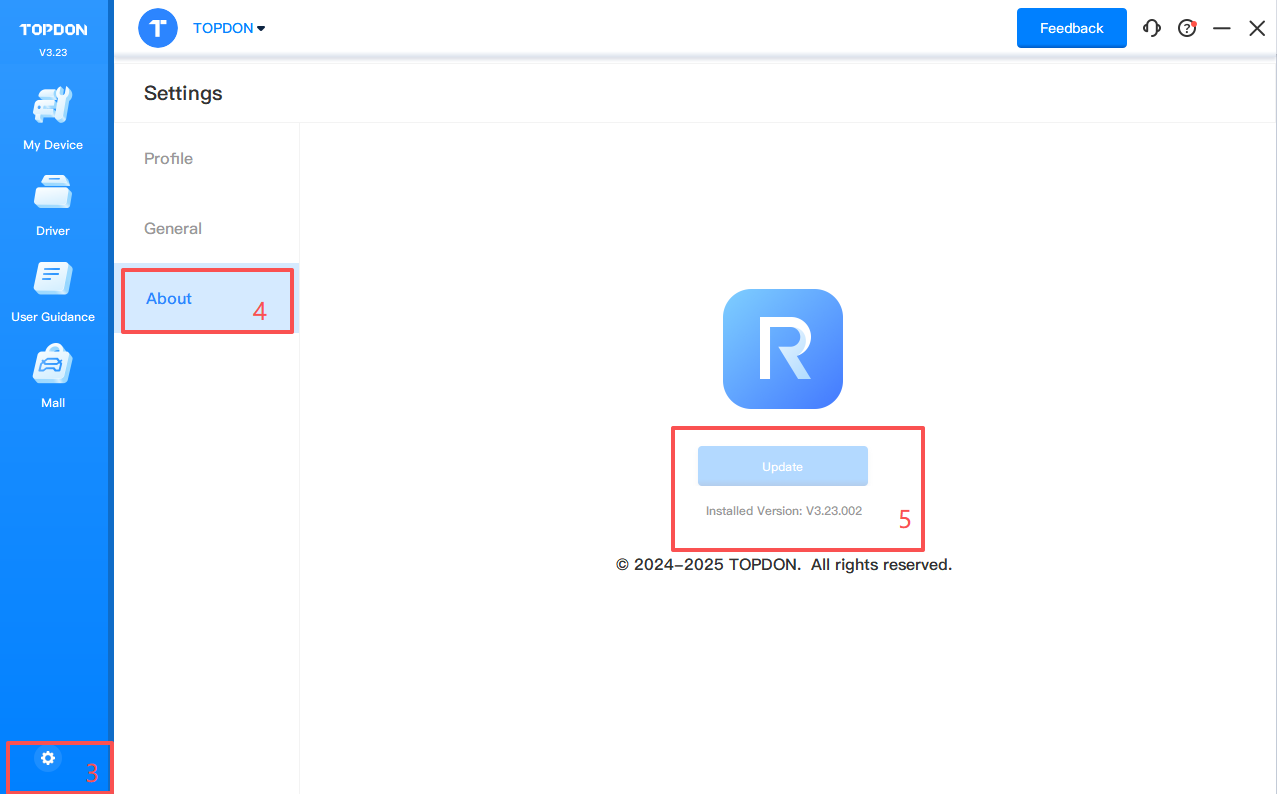

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

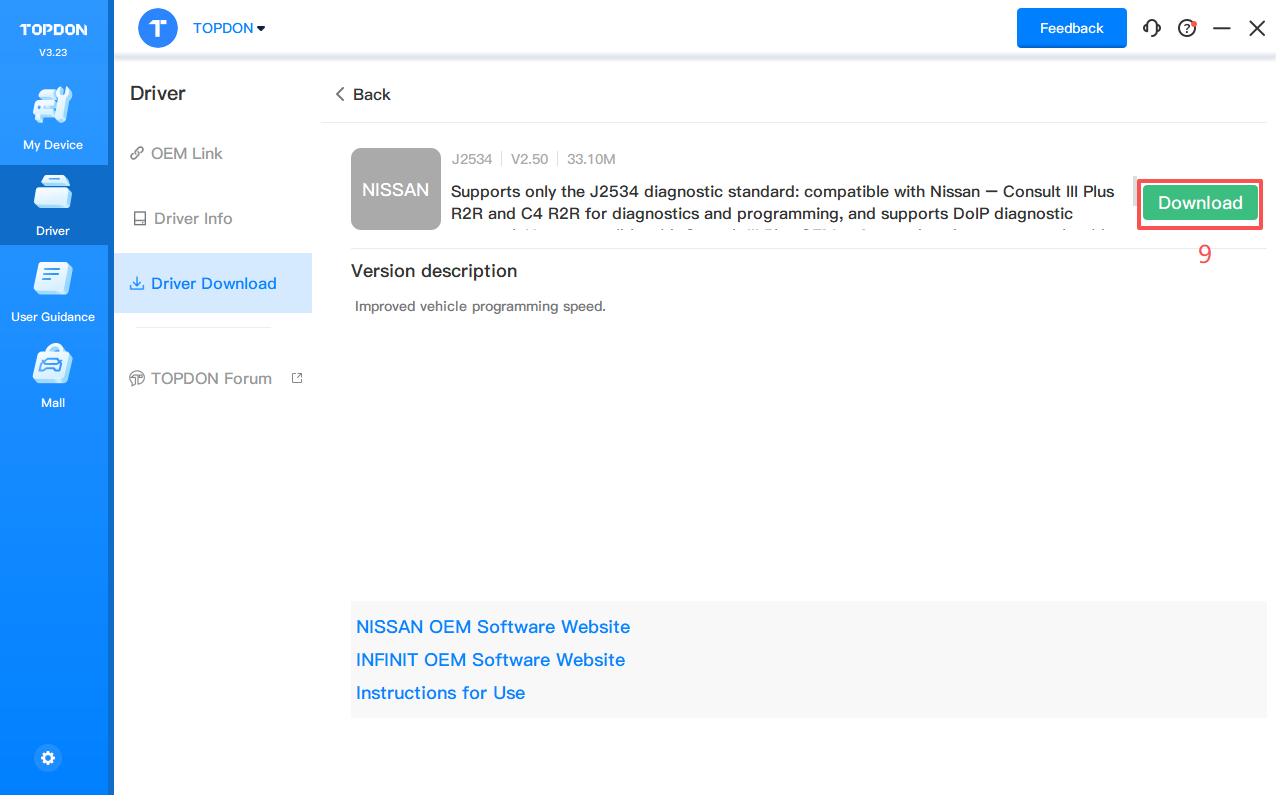

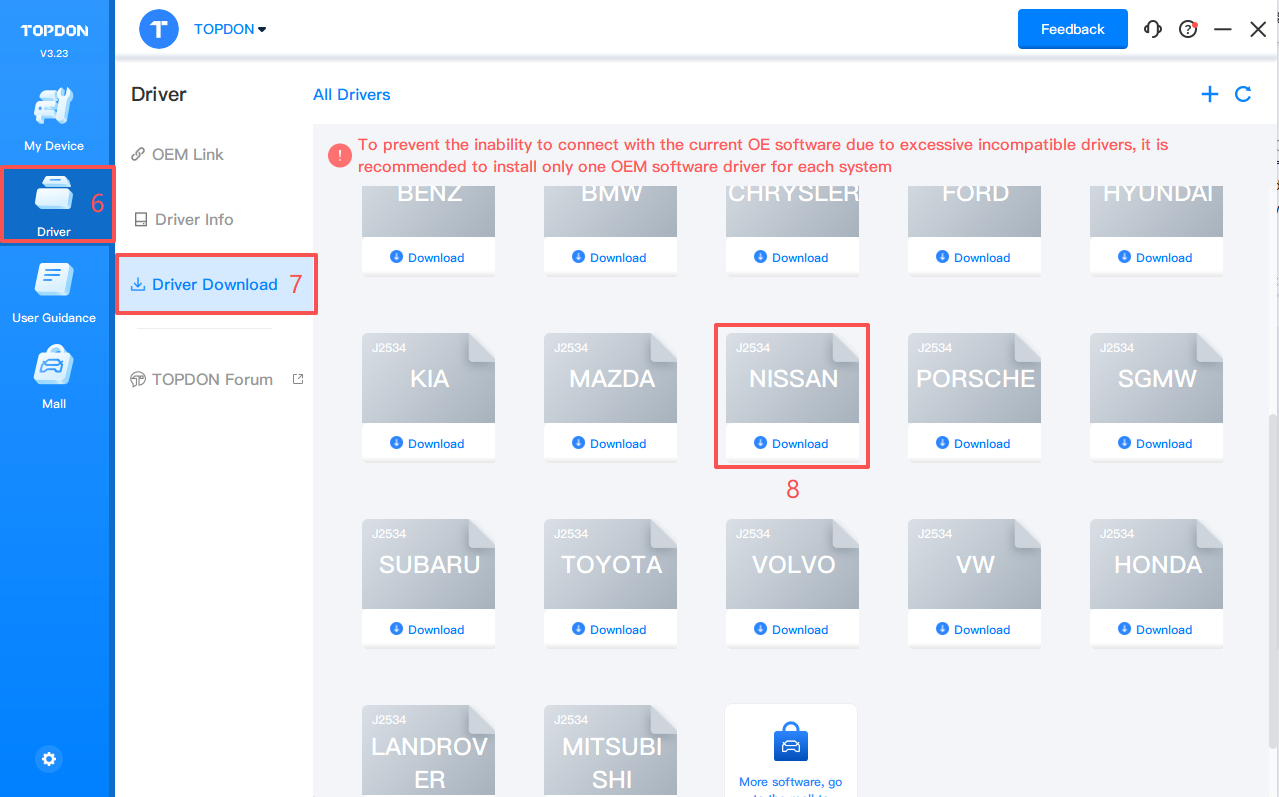

3. Click Driver > Driver Download. Click NISSAN and click Download to download the driver.

Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

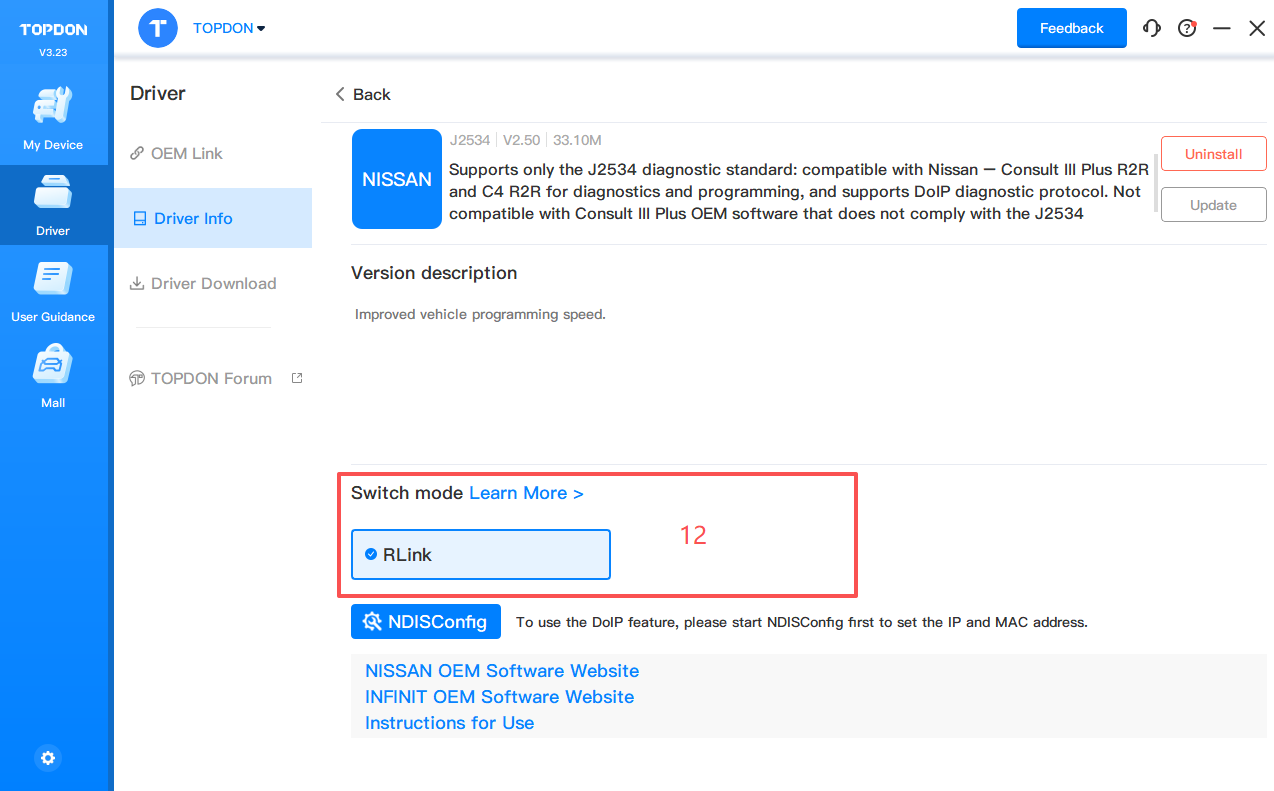

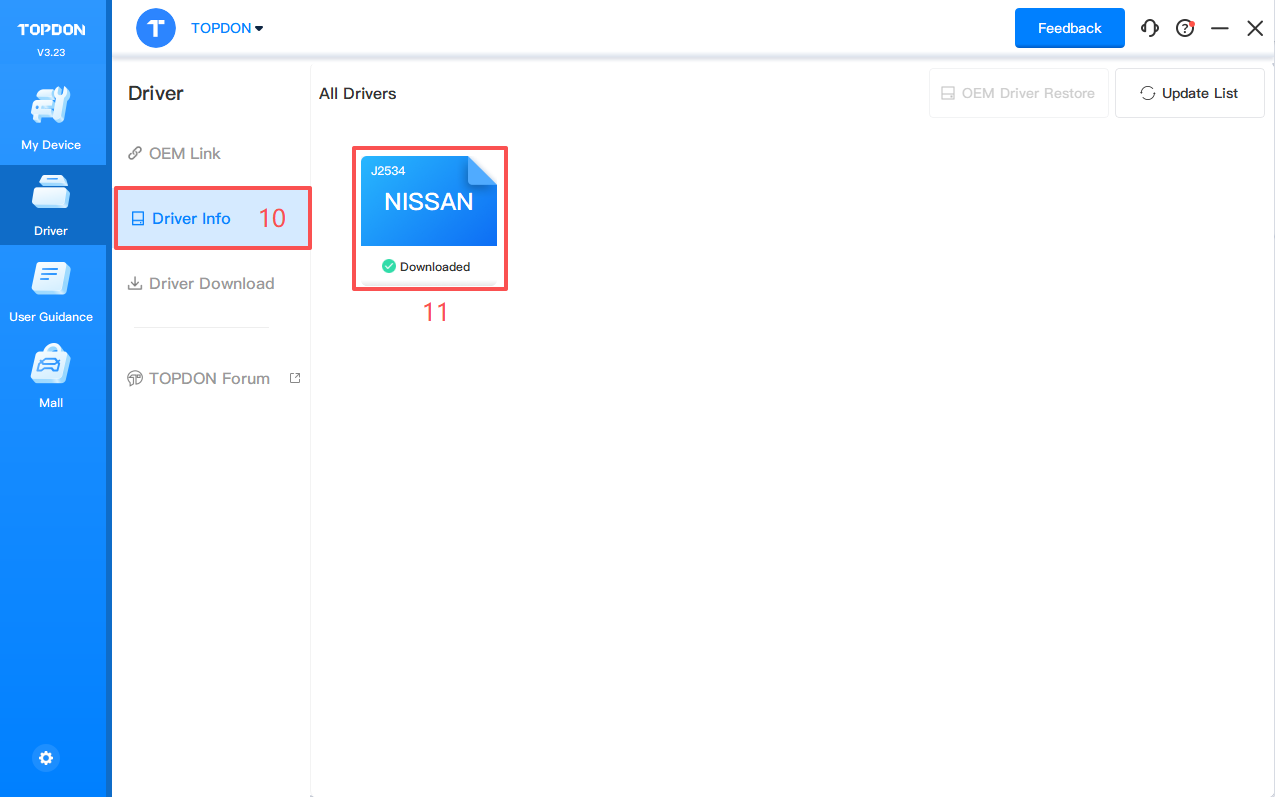

4. Click Driver > Driver Info. Then click NISSAN to check the driver mode.



5. When using RLink X7 devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

Note: For Nissan, only C3P R2R/C4 R2R is compatible with the J2534 diagnostic standard. C3P /C4 is not compatible for the time being. The NDISConfig tool is only required for the C4 R2R version.

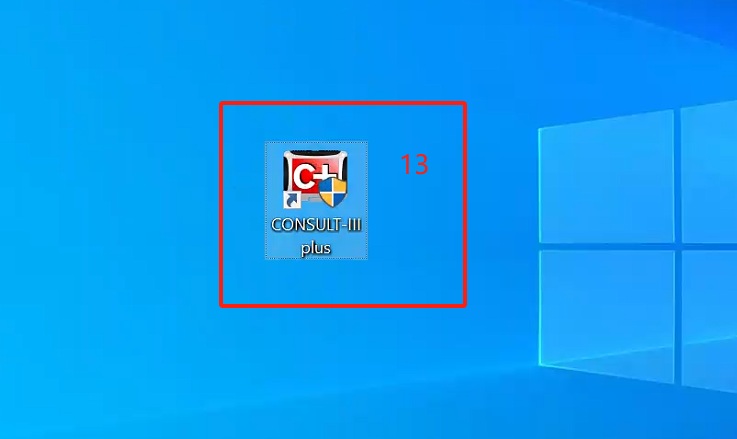

6. Double click the icon to open the CONSULT-III R2R

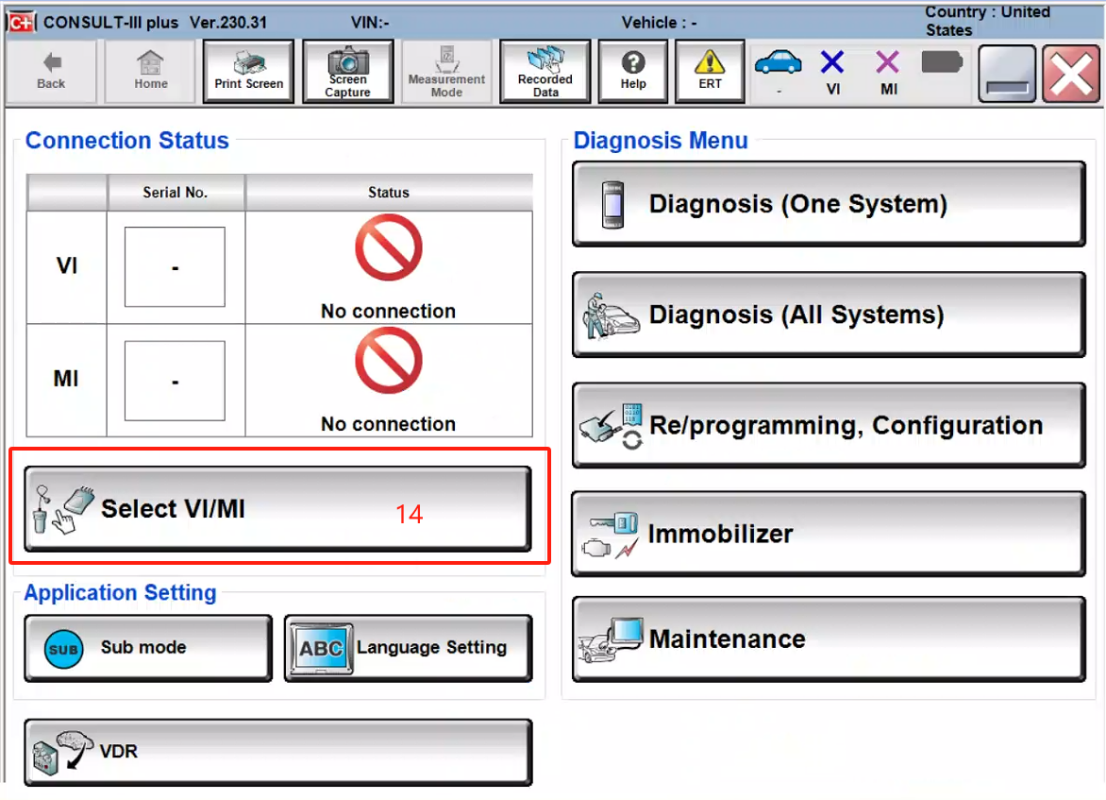

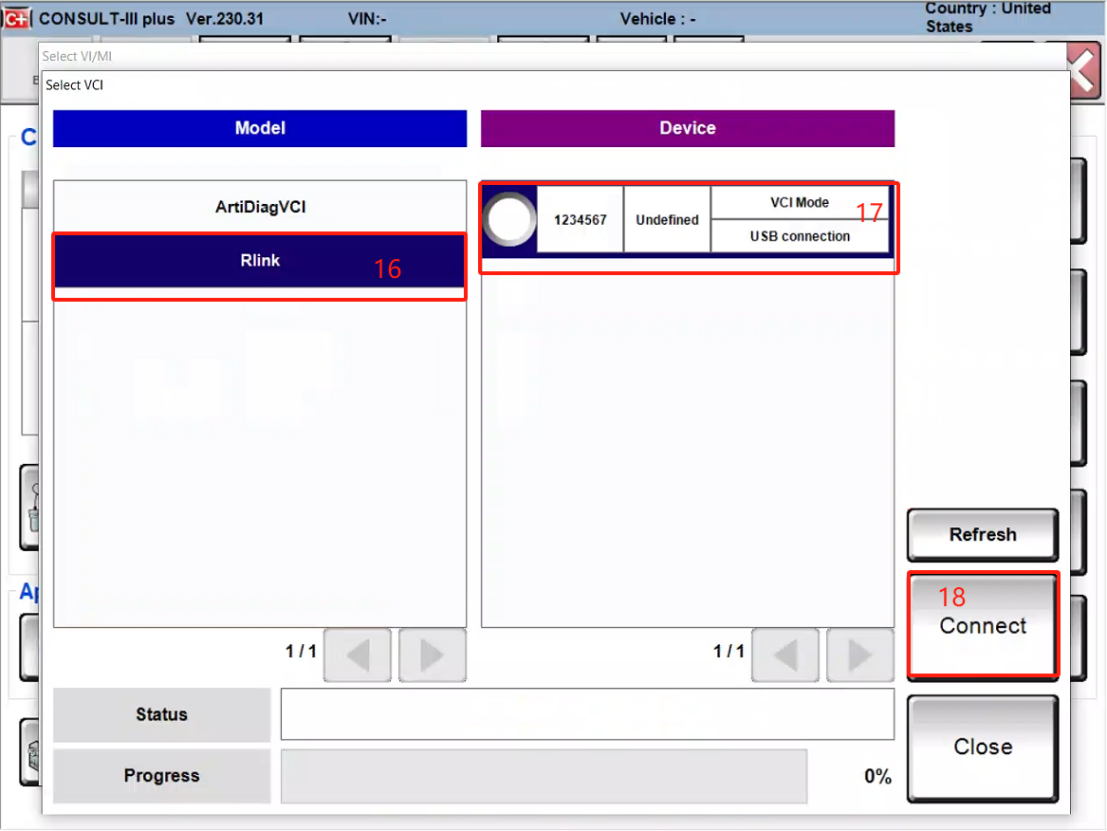

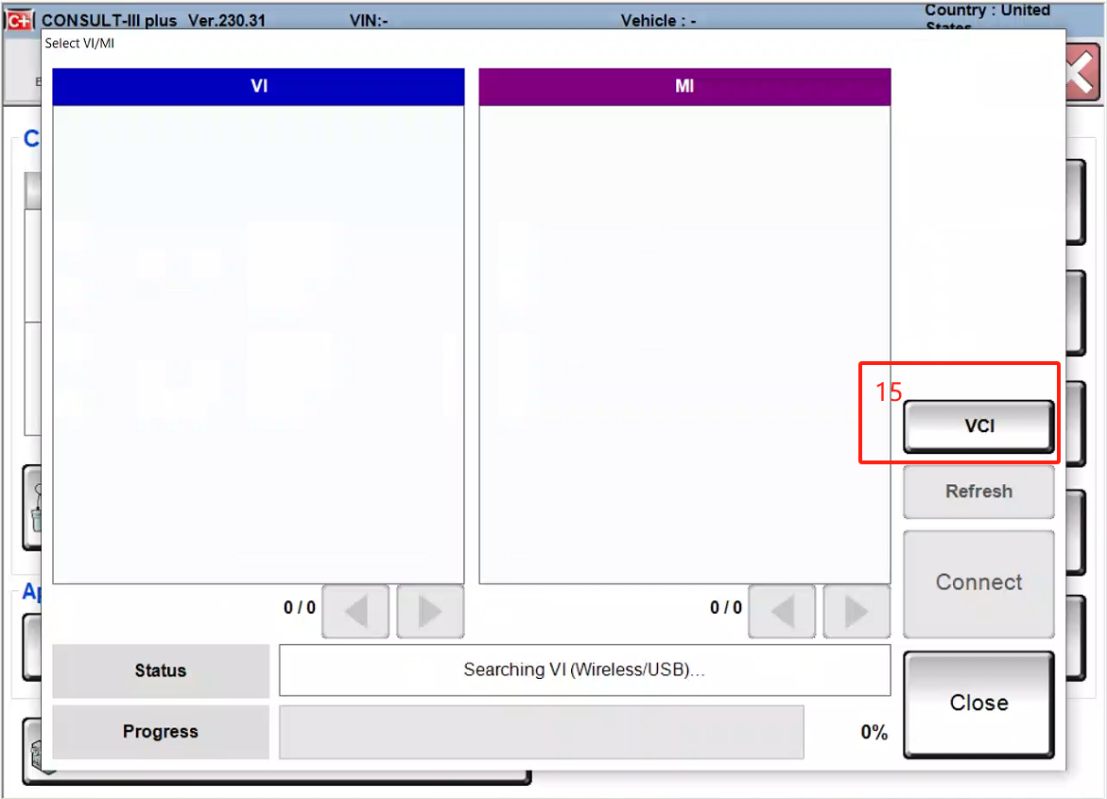

7. Choose RLink driver mode following the order below.

Note: The NISSAN software without the VCI option is not the R2R version and does not support direct use with RLink X7.

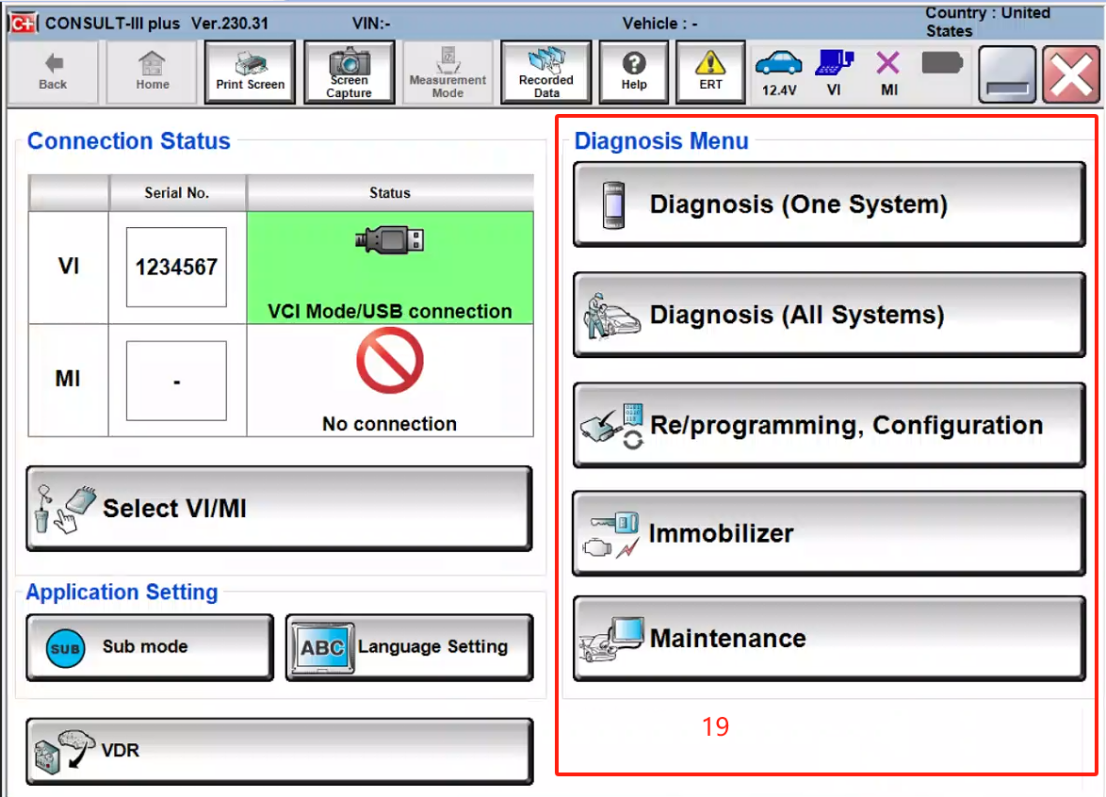

8. After selecting the driver, the VCI status will turn green. You can start vehicle diagnostics.

If you encounter any problems, you can send an email to support@topdon.com.
