Tips:You need to install the Ford OEM software before use. If it's not installed yet, you can download and install it from the official Ford website.
https://www.fordserviceinfo.com/

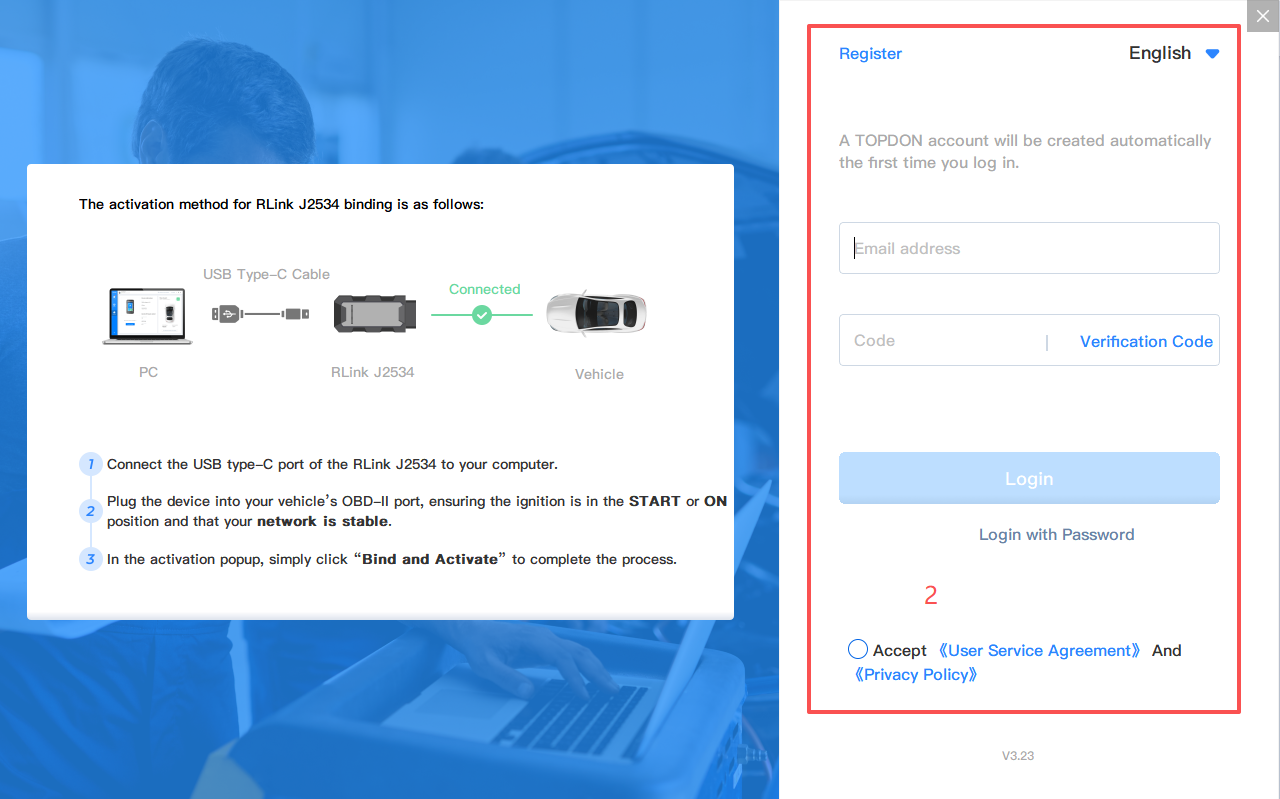

1. Open the RLink Platform.Clicking “Login to the Account” will automatically
redirect you to the login page.Log in to the account bound to the RLink J2534 device.
Note: After binding and activating the device and downloading the driver, you can use the RLink J2534 device to perform vehicle diagnostics without opening the RLink Platform later.

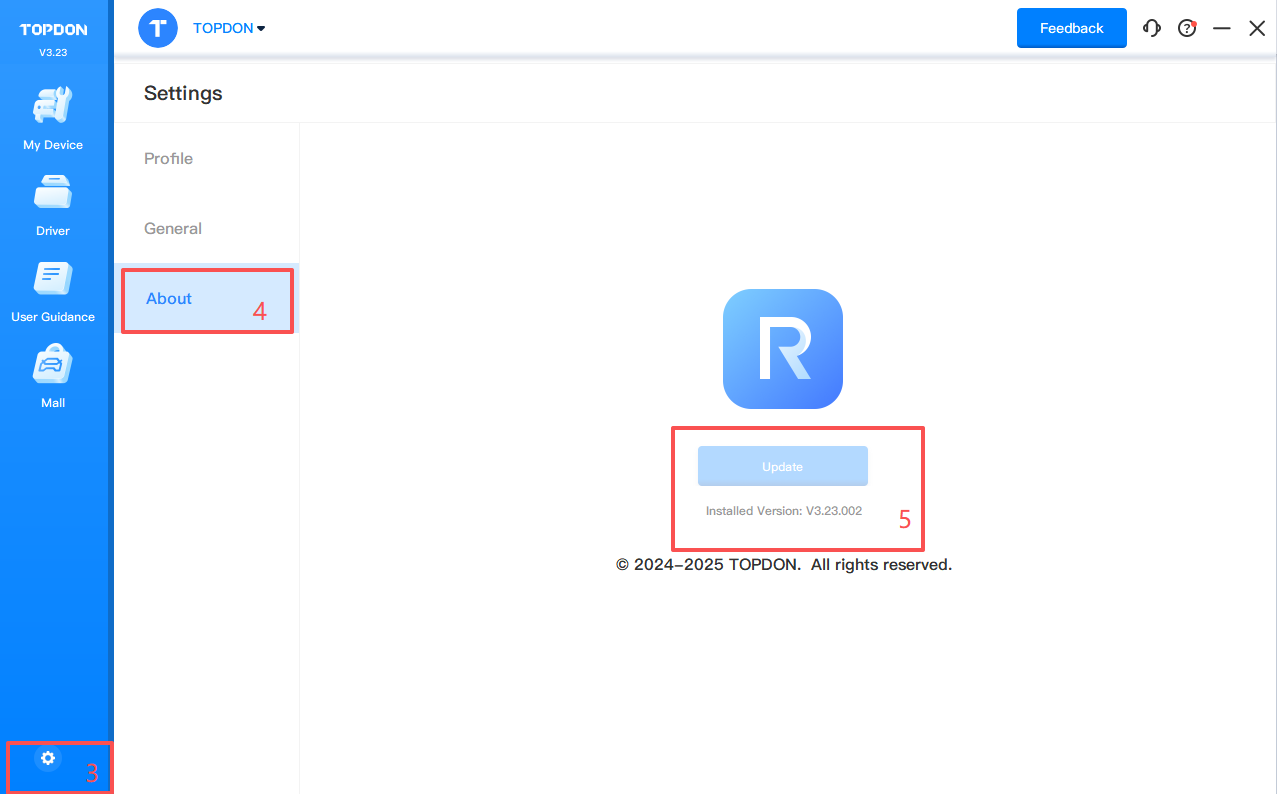

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

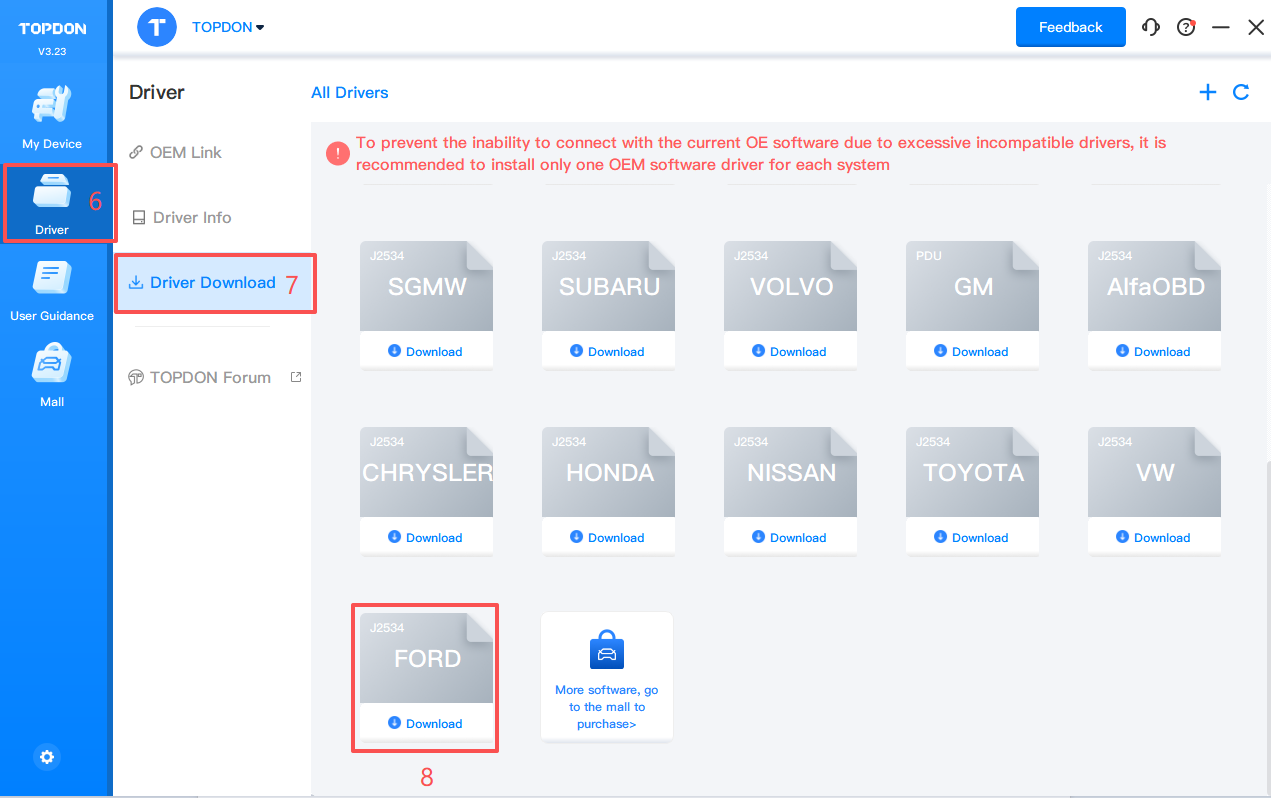

3. Click Driver Management > Driver Download.
Note: Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

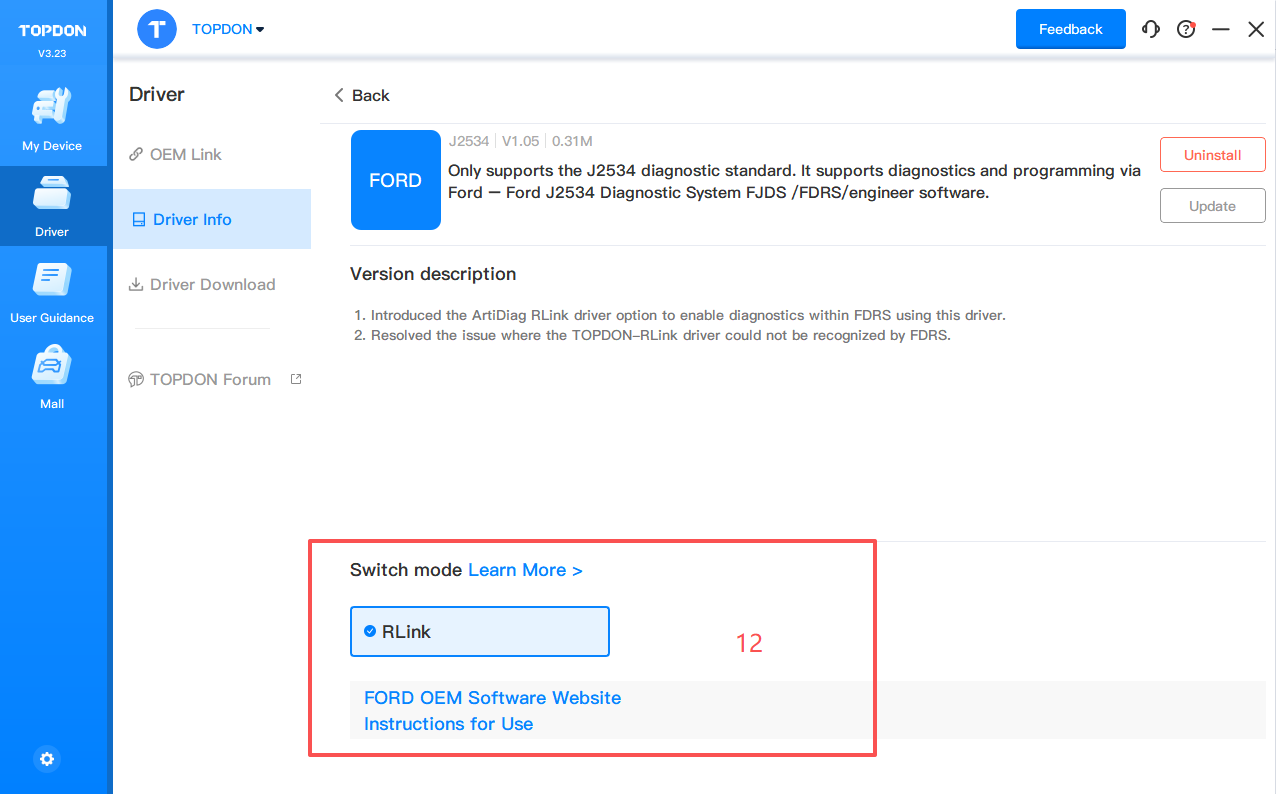

5. Click Driver Management > Drive Info. Then click FORD to configure the driver mode.

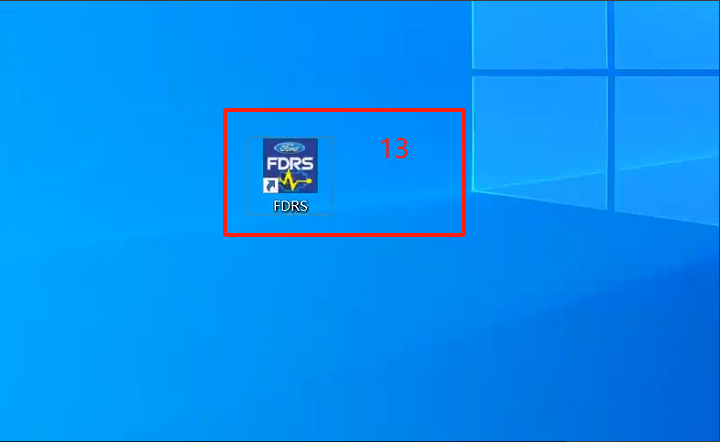

7. Double click the icon to open the FDRS.

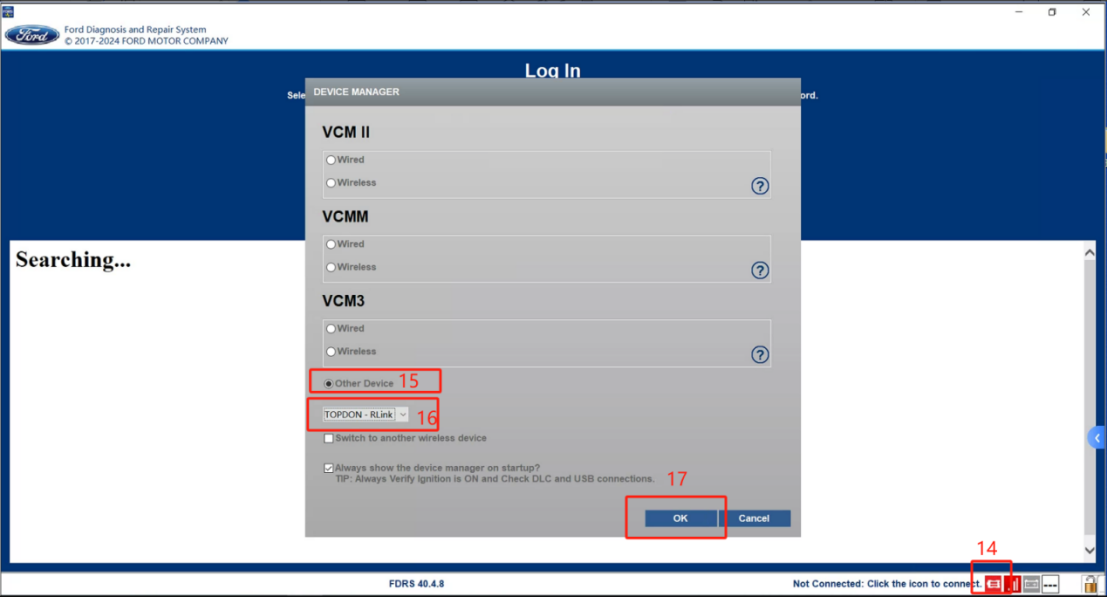

8. Click the icon on the lower right corner. Click Other Device and choose RLink. Then click OK to continue.

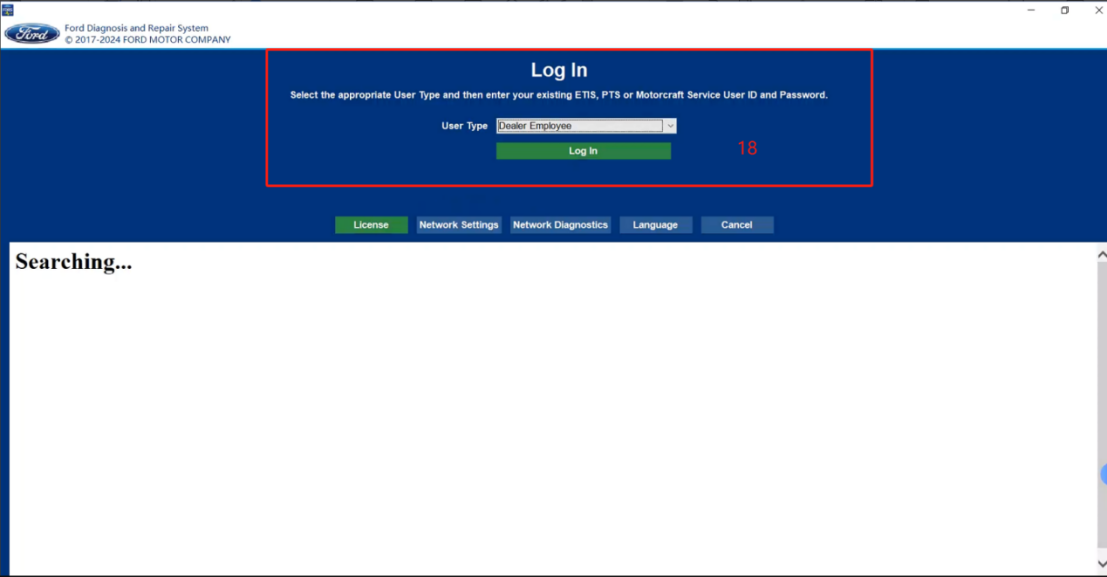

9. Log in to the FDRS diagnostic account to perform diagnostic programming.

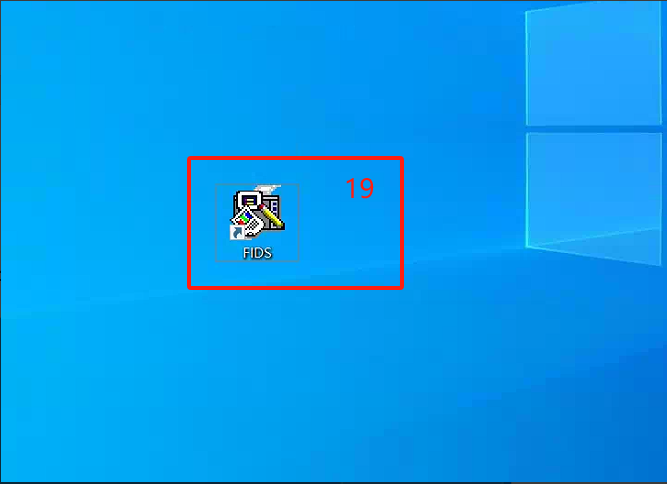

Instructions for using FJDS in conjunction with RLink J2534
2.Check the device driver on the FJDS.

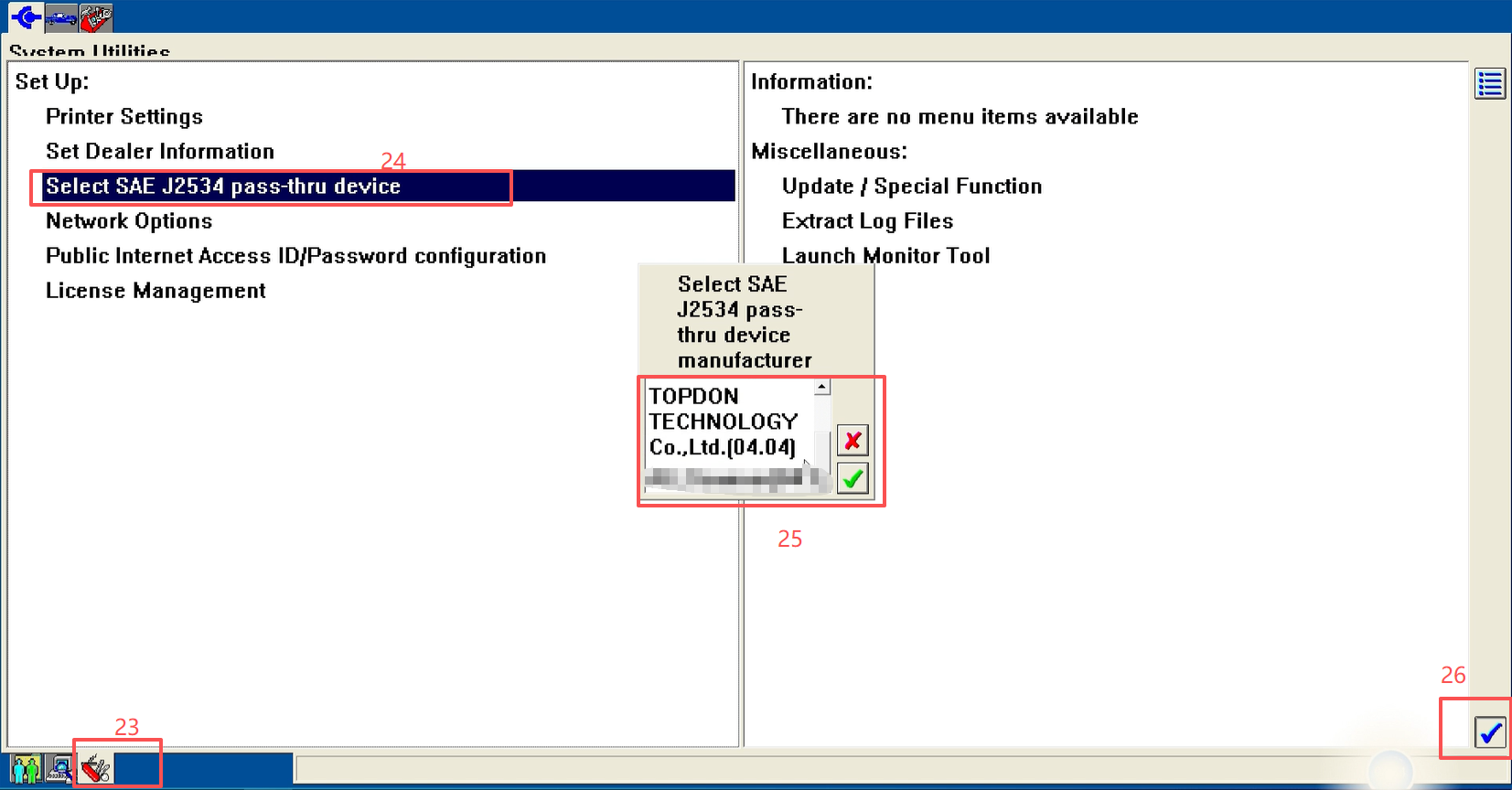

3.Follow the orders in the figure below to select the device.

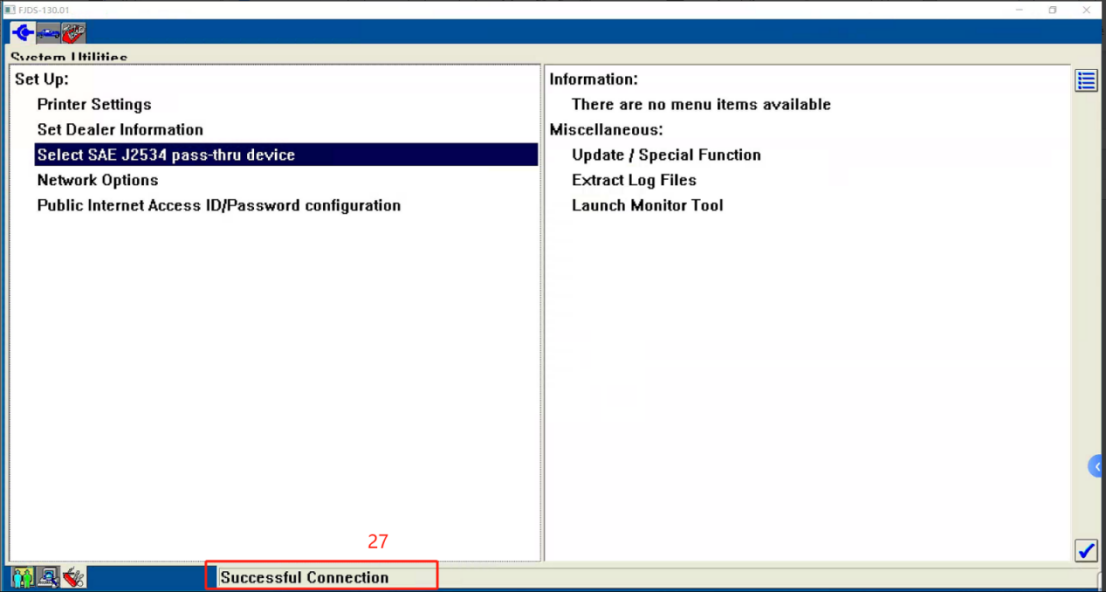

4.When the connection is successful, a successful connection message will be displayed.

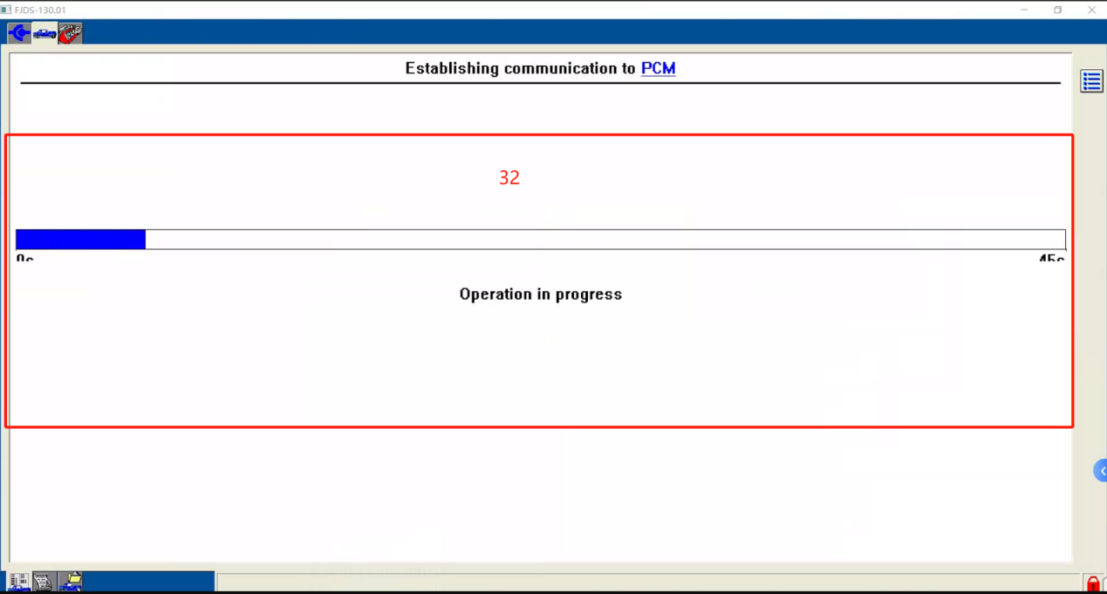

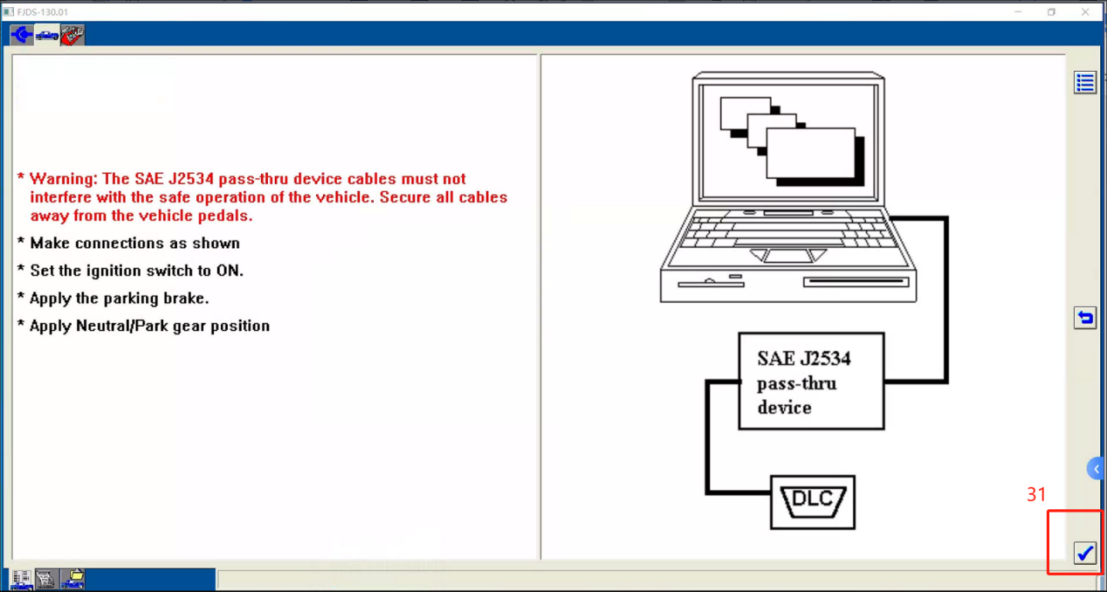

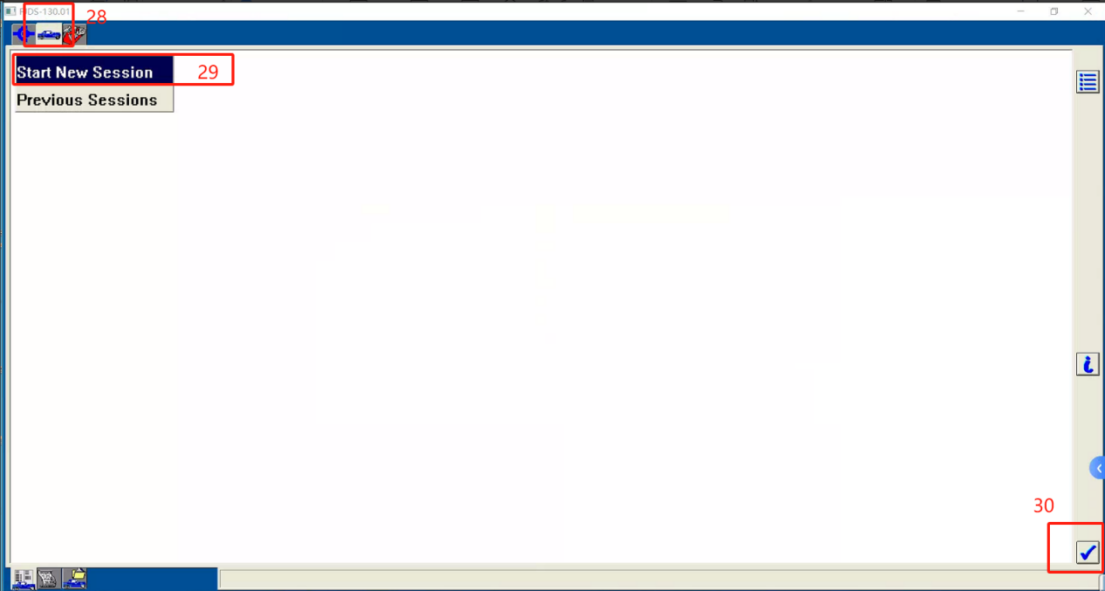

6.The system will detect the vehicle automatically.
Please refer to the connection instruction video:
